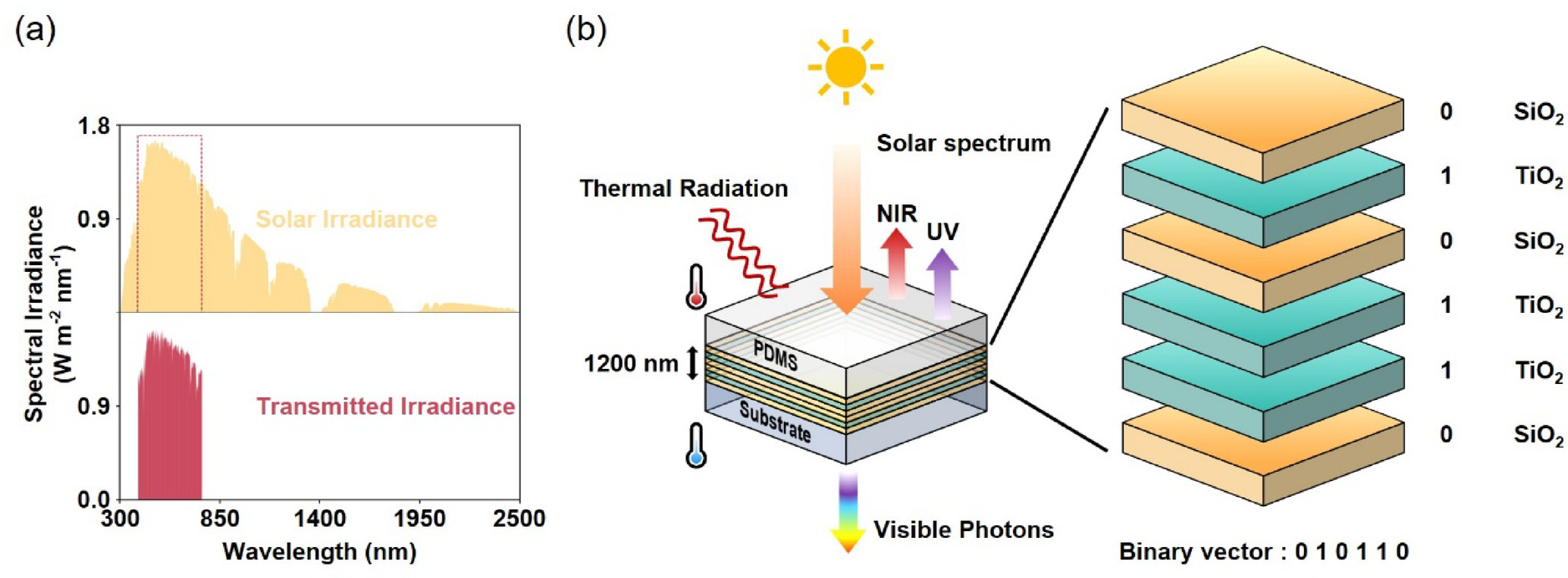

Fig. 3
From: Higher-order factorization machine for accurate surrogate modeling in material design
Design task of optical coating using an active learning scheme. (a) Solar irradiance (air mass 1.5 global), transmission efficiency (highlighted by a red-dotted line), and the corresponding transmitted irradiance of an ideal TRC structure as a function of wavelength. (b) Schematic of the TRC structure, where the PML structure is encoded into a binary vector for input training data in ML. The schematics are created by Microsoft PowerPoint.
