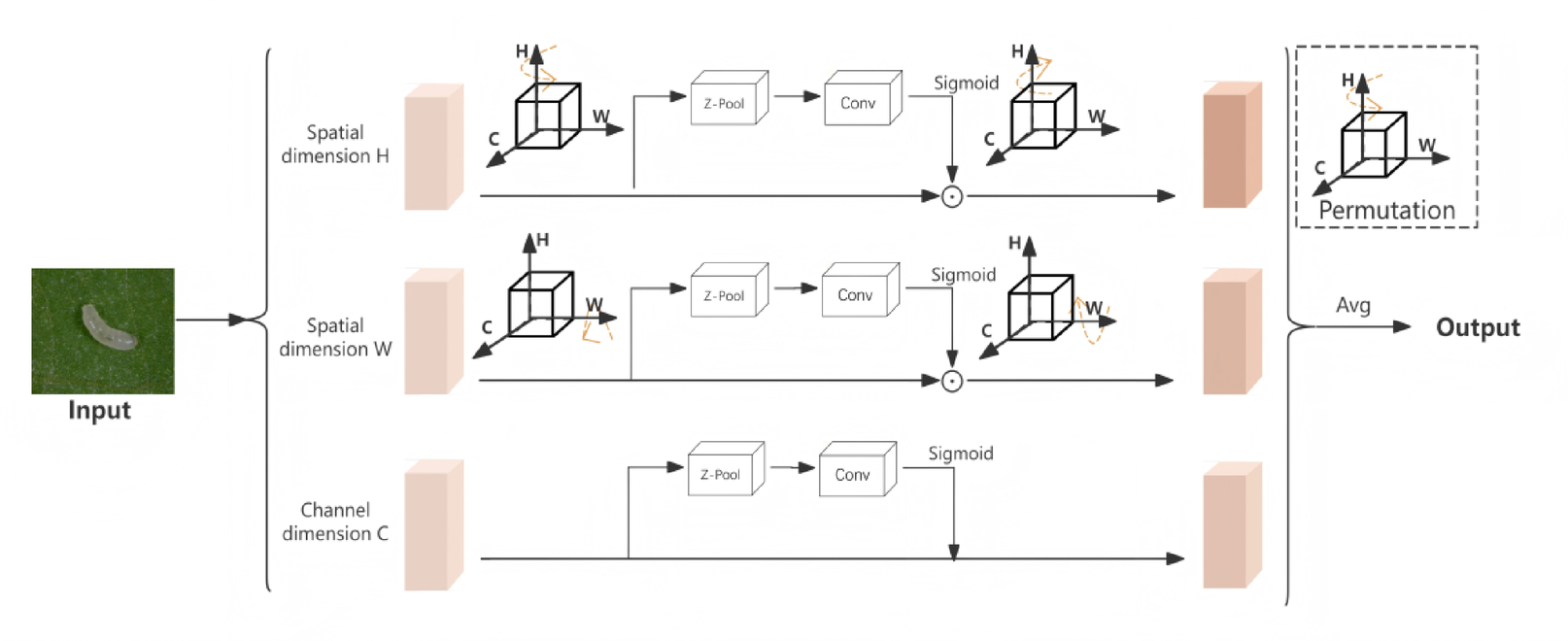

Fig. 4
From: YOLO-DP: A detection model of fifteen common rice diseases and pests
Diagram of cross-dimensional interaction in triplelet attention. In this figure Triplet Attention consists of three parallel branches. Two of these branches are responsible for capturing cross-dimensional interactions between the channel (C) and spatial dimensions (H or W). The last branch is used to construct Spatial Attention. The outputs of the three branches are aggregated using averaging.
