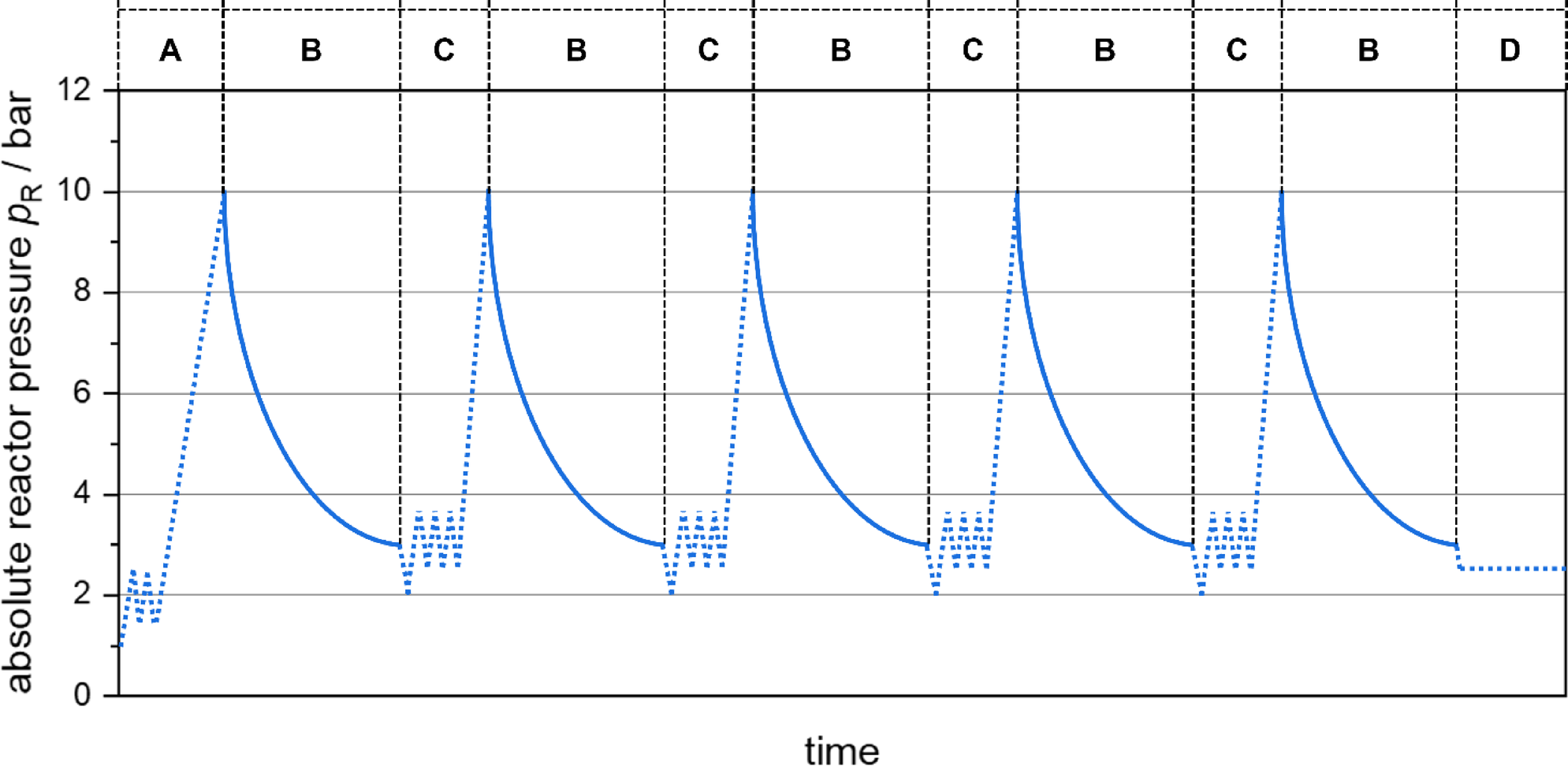

Fig. 5

Schematic illustration of a five-cycle repetitive closed batch test pattern. Phase A represents the initial exchange of the reactor atmosphere. Phase B illustrates the subsequent pressure decrease resulting from the methanation reaction. Phase C shows the atmosphere exchange between reaction cycles, and Phase D marks the end of the test pattern. Dotted lines indicate sections excluded from data processing; only solid lines are considered in further calculations.
