Fig. 11
From: Adaptive non unit traveling wave protection algorithm for multi terminal HVDC grids

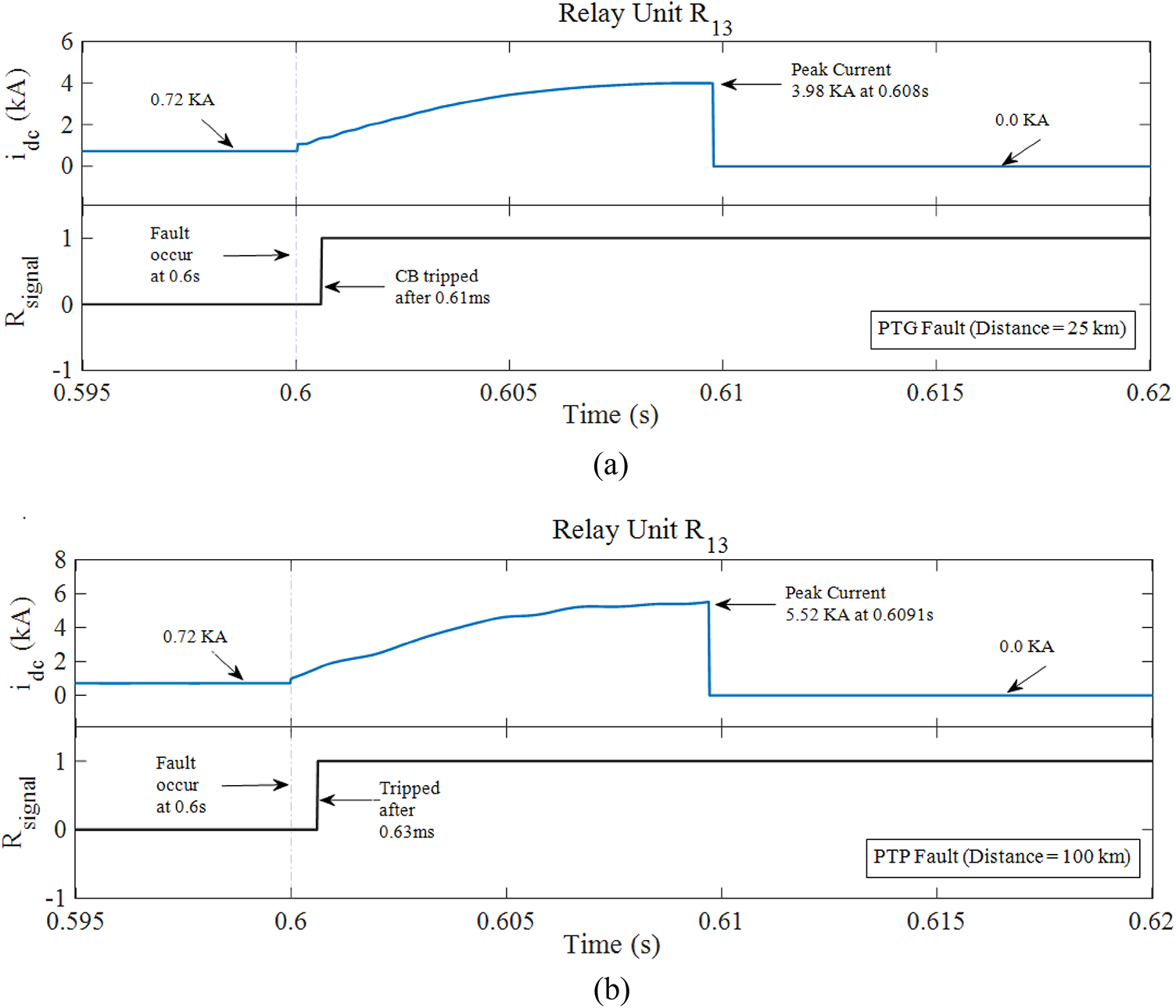

VARC DCCB fault current interruption (a) f13|PTG (d = 25 km, Rf = 0Ω). (b) f13|PTP (d = 100 km, Rf = 5Ω).
Fig. 11 | Scientific Reports
From: Adaptive non unit traveling wave protection algorithm for multi terminal HVDC grids
VARC DCCB fault current interruption (a) f13|PTG (d = 25 km, Rf = 0Ω). (b) f13|PTP (d = 100 km, Rf = 5Ω).
