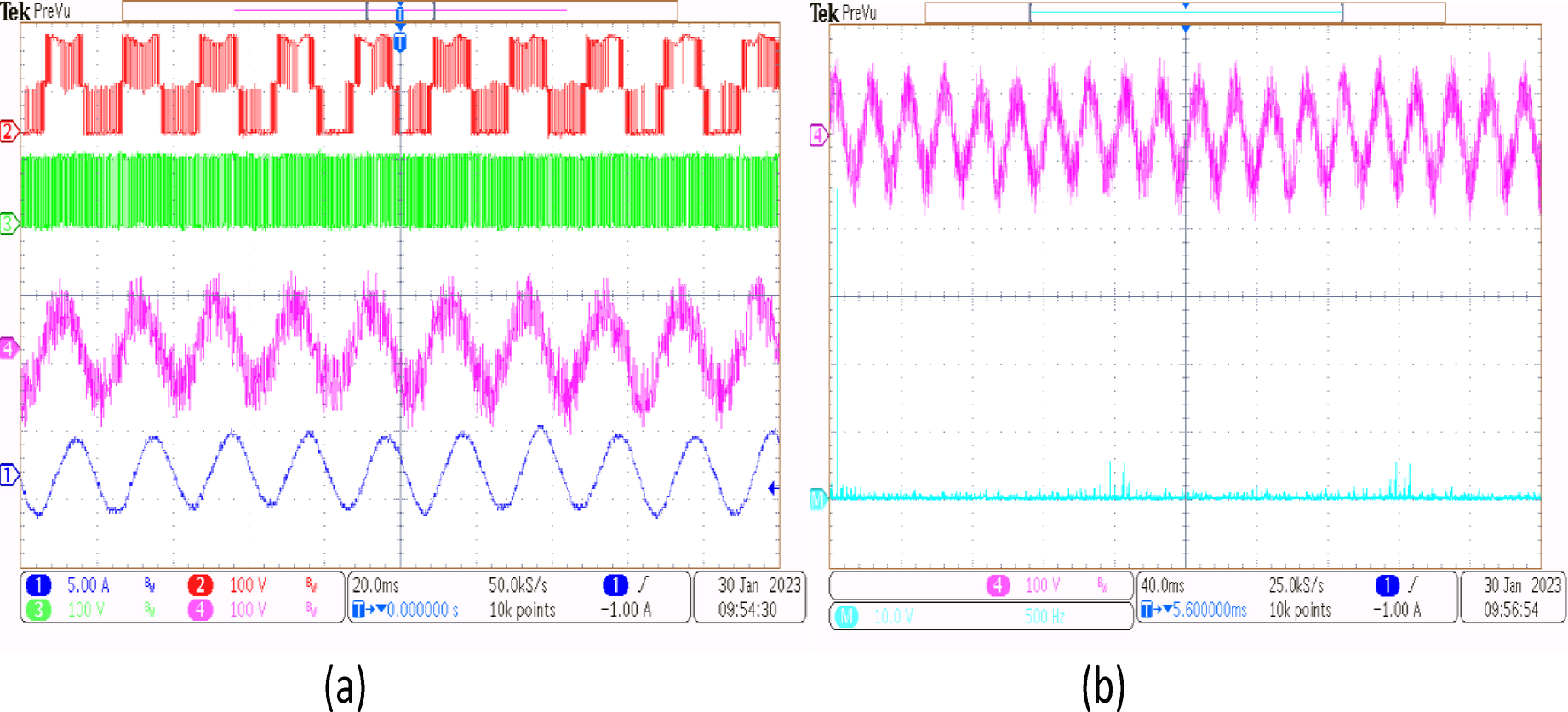

Fig. 19

Proposed OEWIM (a) Pole voltage of main inverter, pole voltage of supplemental inverter, motor phase voltage and phase current with m = 1.1 (X label - Time(s), Y label -Voltage (100 V/div), Current (5 A/div)) (b) FFT analysis of motor phase voltage (100 V/div, 500 Hz/div).
