Fig. 2 | Scientific Reports

Fig. 2

From: Effects of silicon nano-chelate on Tetranychus urticae populations and plant structural and physiological traits in rose cultivars

Fig. 2

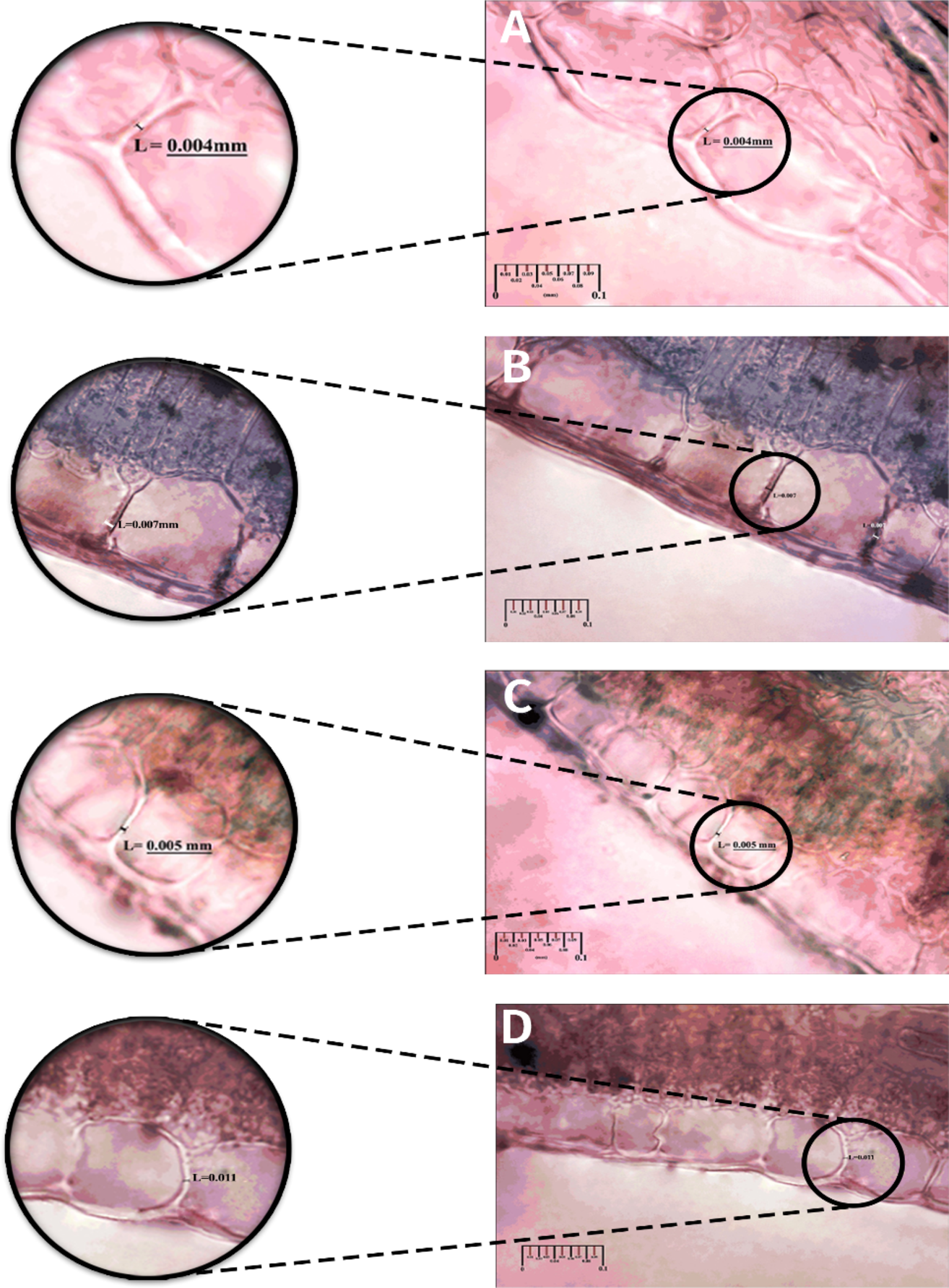

Light micrographs showing transverse sections of cell wall thickness of different rose cultivars in the first leaflet the 5-leaflet leaf of the flowering stem. (A) Effect of non-application of silicon nano-chelate (N-Si) in ‘Jumilia’ (control), (B) effect of application of N-Si in ‘Jumilia’, (C) effect of non-application of N-Si in ‘Samurai’ (control), (D) effect of application of N-Si in ‘Samurai’.
