Fig. 6
From: Investigation of Akt1 behavior on gold surface from molecular dynamics insight

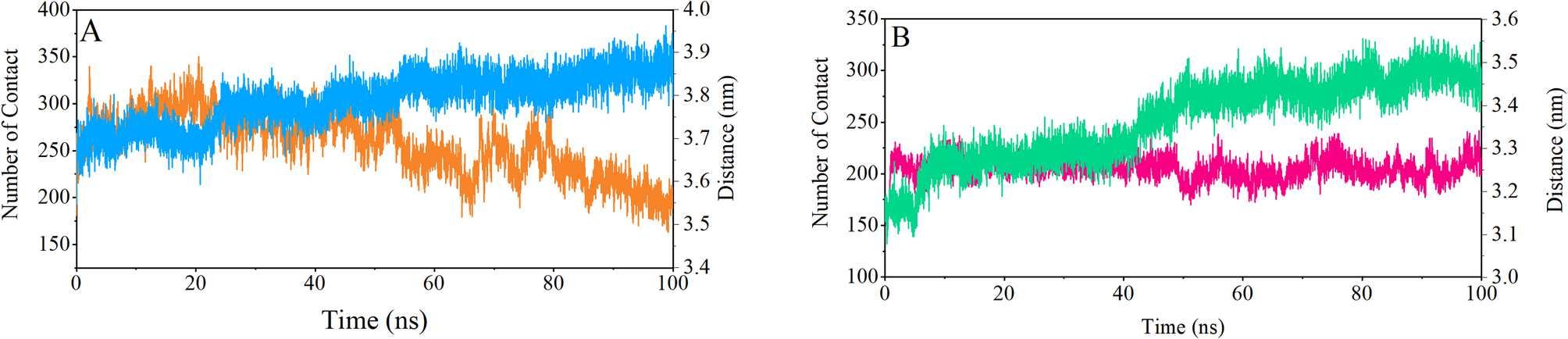

The distances between the centers of masses (COM) of the AKT1 protein and citrate-coated gold nanoparticles sheet (orange and red color), the number of contacts formed between the protein and gold nanoparticles (blue and green color) during 100 ns MD simulation. The PH-in conformation (A), and the PH-out conformation (B).
