Fig. 6

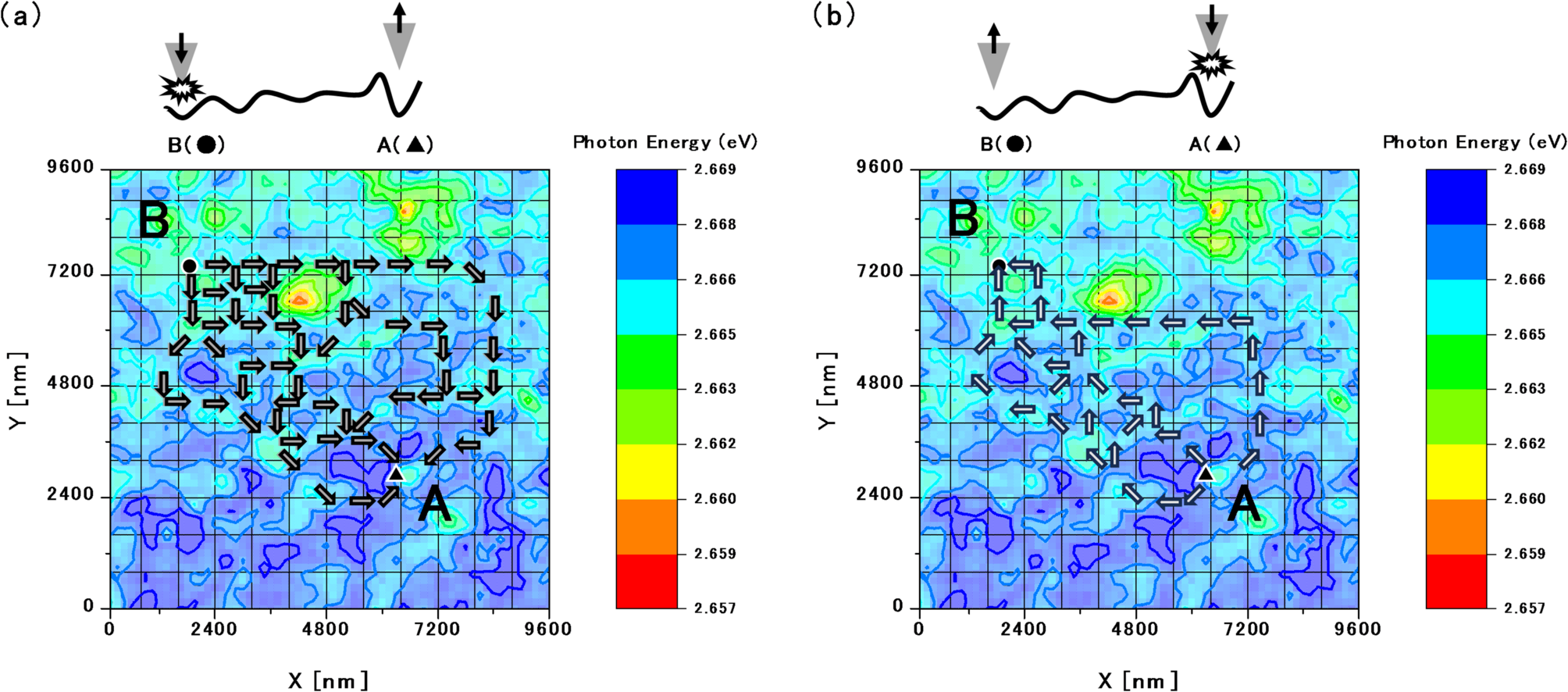

Diagrams predicting the possible diffusion paths of the excited carriers between point A and point B. Shown are the partial predictions of the diffusion paths followed by the excited carriers (a) generated at point B and moving toward A and (b) generated at point A. Multiple possible paths are predicted for the excited carriers generated at either point.
