From: Mine drainage leads to the reshaping of the spatial patterns of soil extracellular econzymatic stoichiometry and microbial resource limitation

Fig. 5

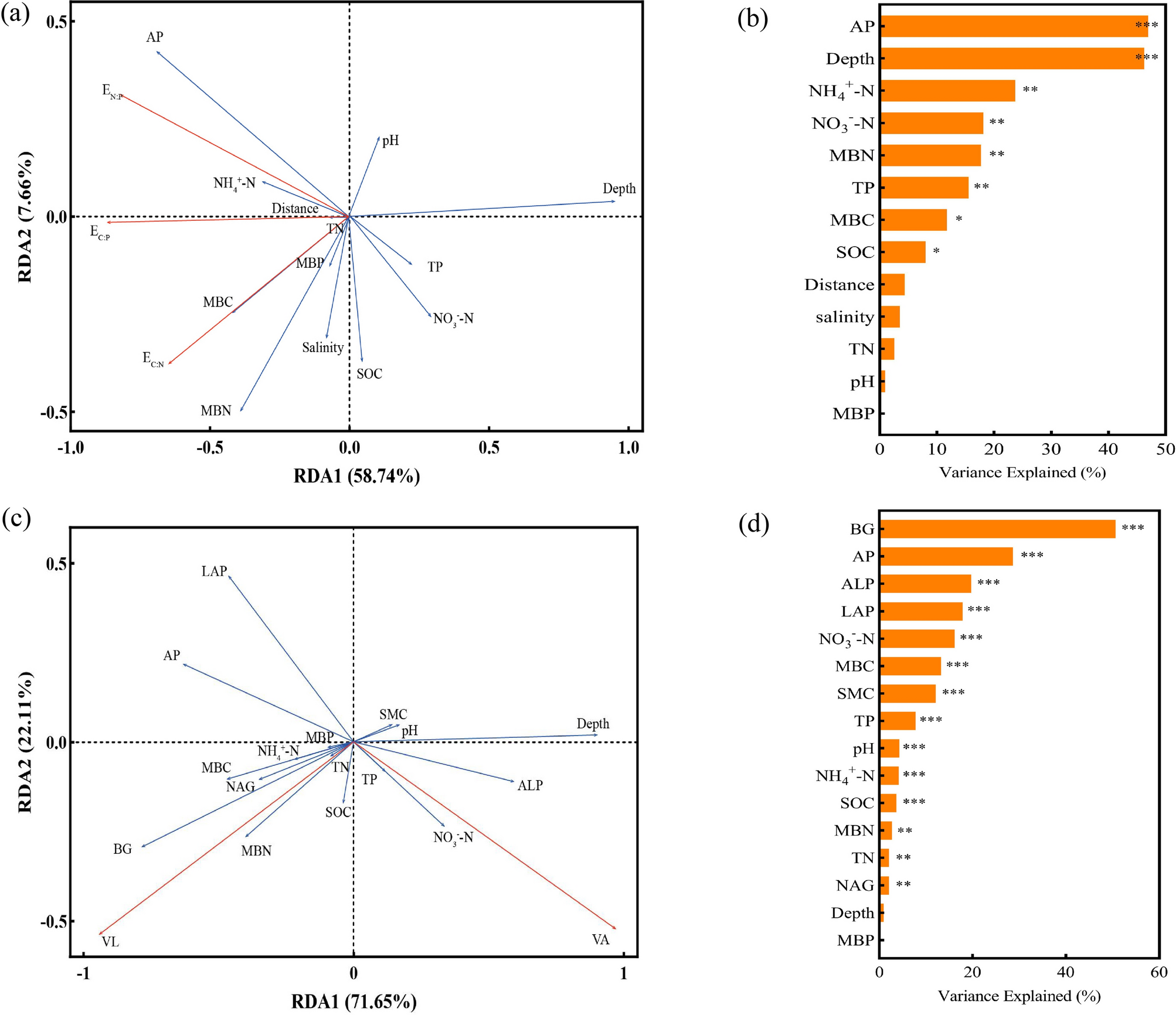

Redundancy analysis of the soil abiotic and biotic factors effect on enzyme activity and ecoenzymatic stoichiometry (a) and microbial resource limitation (c) .Envfit analysis identified key factors of enzyme activity and ecoenzymatic stoichiometry (b) and microbial resource limitation (d). Significance levels are as follows: *p < 0.05;**p < 0.01; ***p < 0.001.
