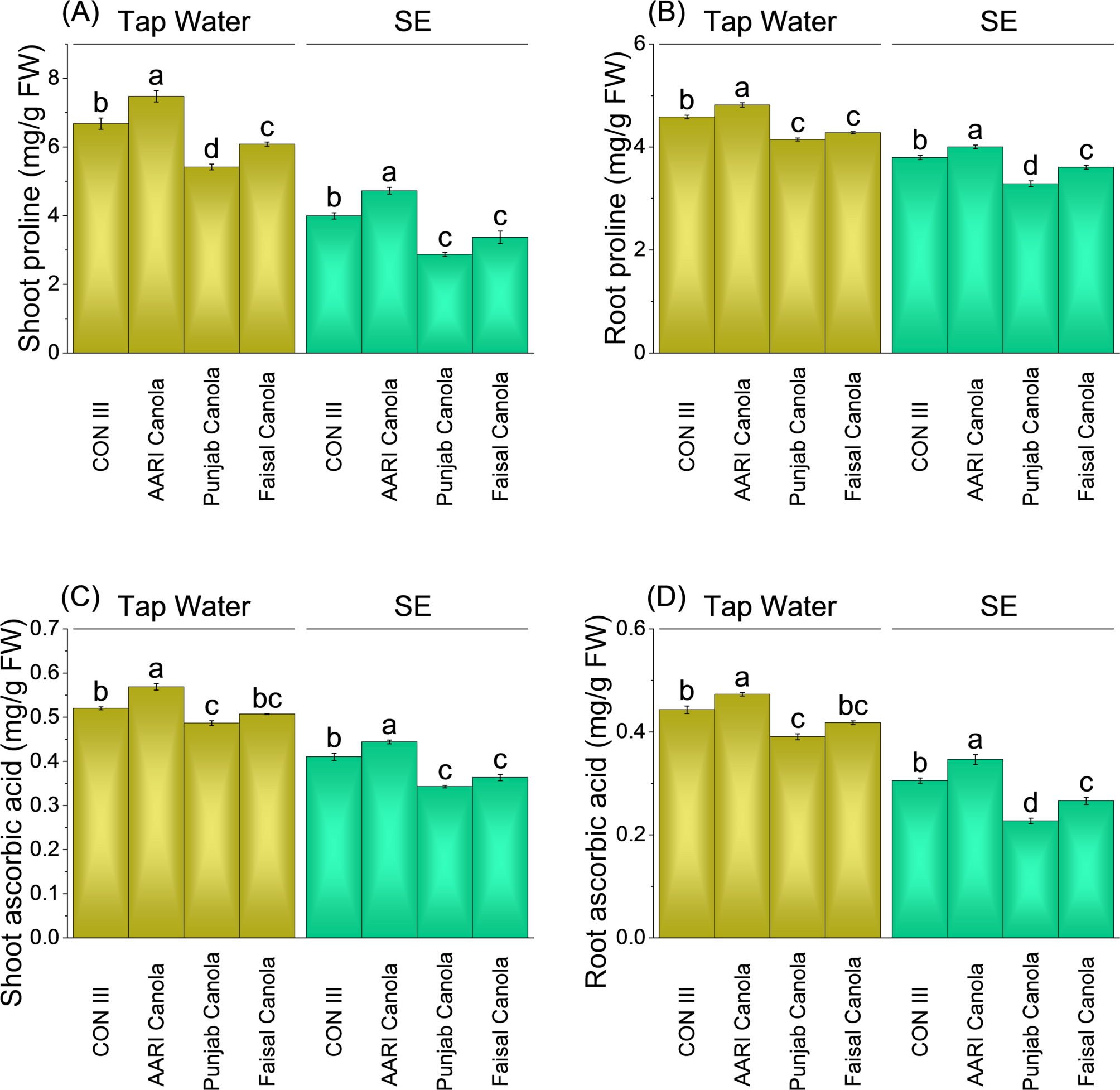

Fig. 4

Effect of sewage effluent (SE) on different varieties of canola shoot proline (A), root proline (B), shoot ascorbic acid (C), and root ascorbic acid (D). Significant differences were detected at (p < 0.05) using the Tukey test; different letters on the bars represent the means of four replicates with standard error.
