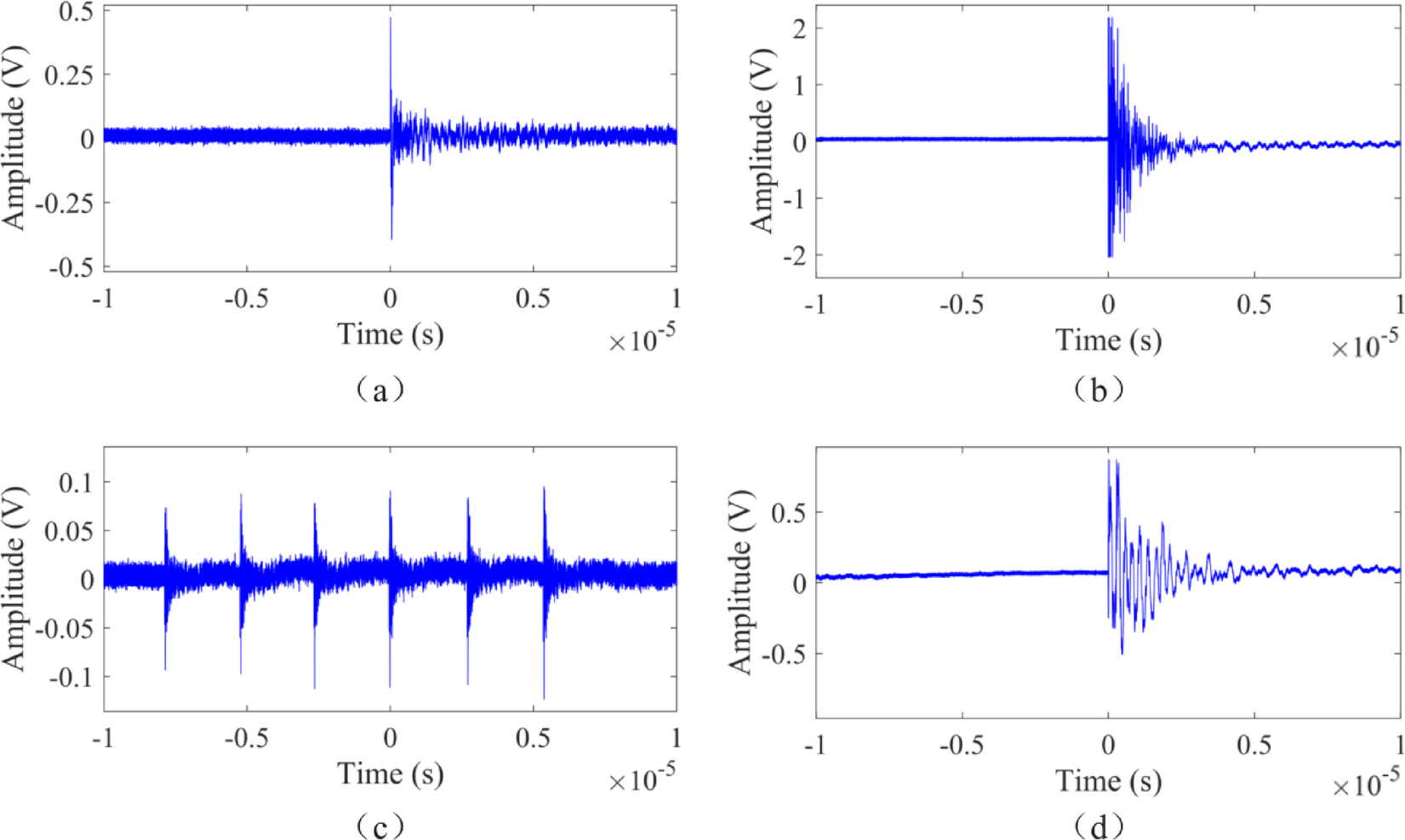

Fig. 5
Samples of pantograph-catenary arc electromagnetic signal: (a) Pantograph raised(internal field probe); (b) Pantograph raised(external field probe); (c) Pantograph lowered(internal field probe); (d) Pantograph lowered(external field probe).
