Fig. 4
From: Room-temperature ultrasensitive photon-level detection in the subterahertz frequency regime

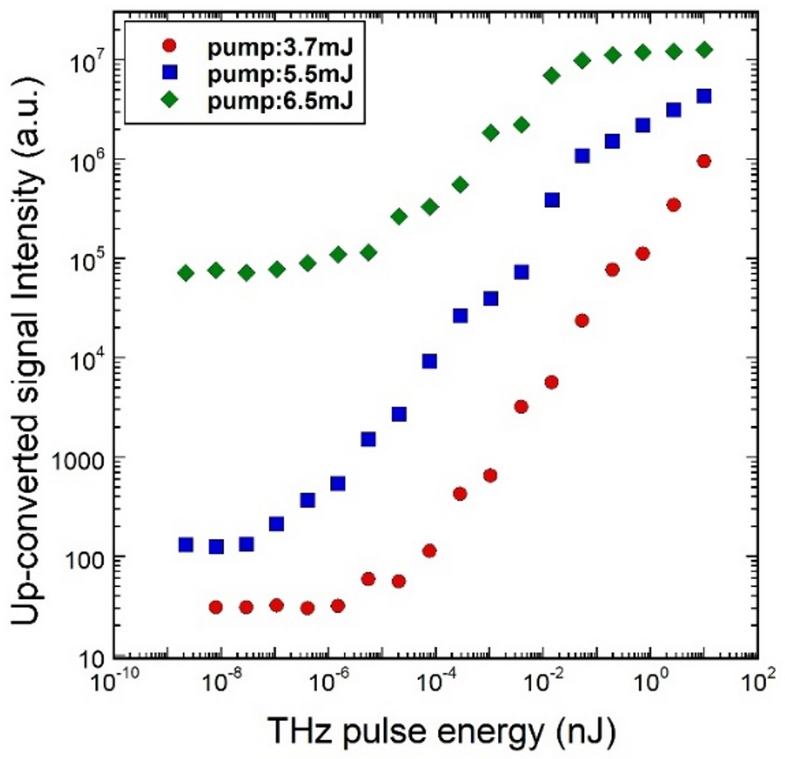

Up-conversion detection results. The vertical axis represents the intensity of the detected up-conversion signal, while the horizontal axis indicates the pulse energy of the input subterahertz wave. The color differences represent variations in the input pulse energy to the PPLNd crystal.
