Fig. 5
From: Room-temperature ultrasensitive photon-level detection in the subterahertz frequency regime

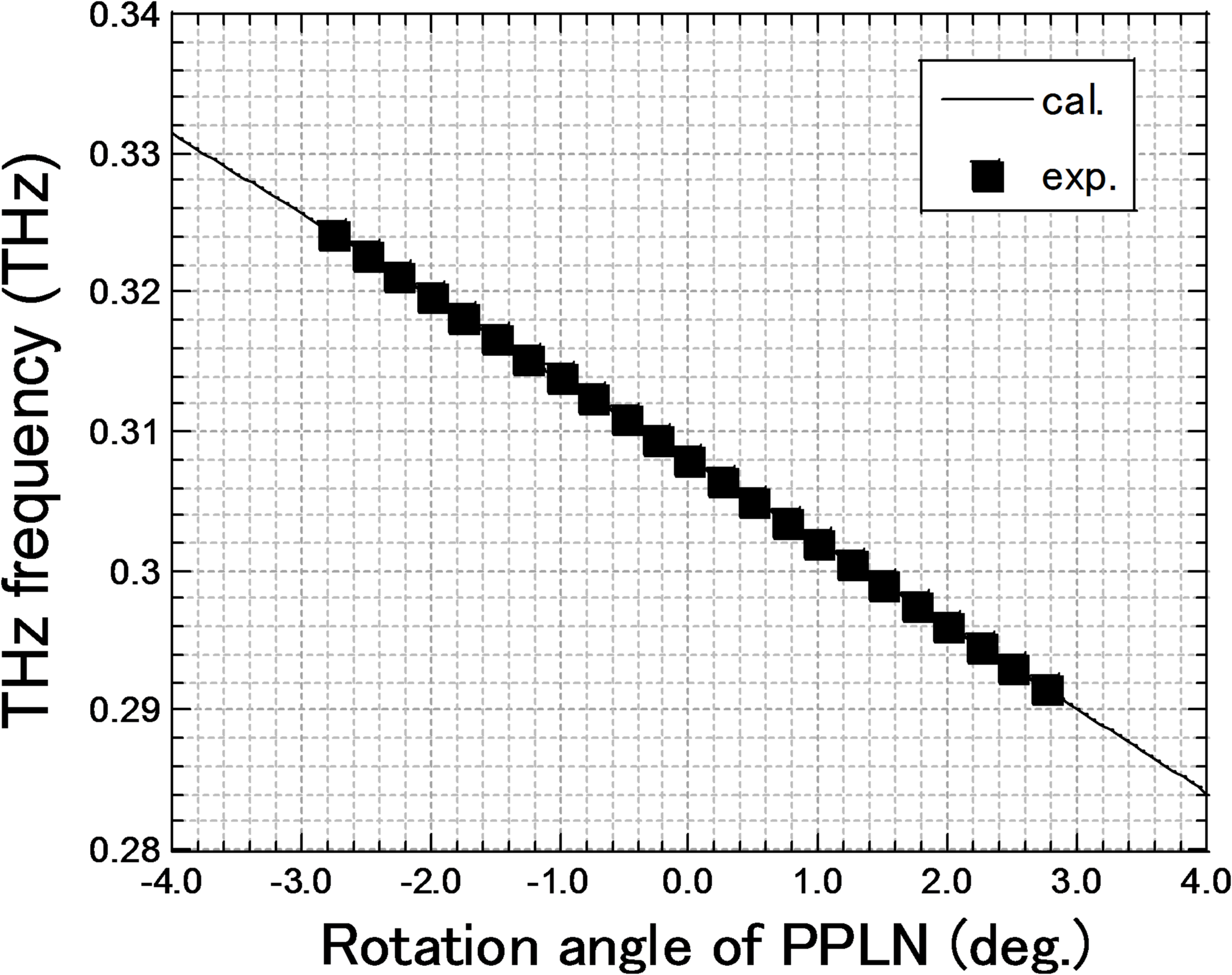

Frequency tunability of detection. The horizontal axis represents the rotation angle of the two PPLN crystals, where 0° is the nominal angle for generating a 308-GHz wave. The vertical axis indicates the frequency at which an up-conversion signal can be detected.
