Fig. 3
From: Greenhouse gas emissions from ditches in oil palm plantations on tropical peatlands in Malaysia

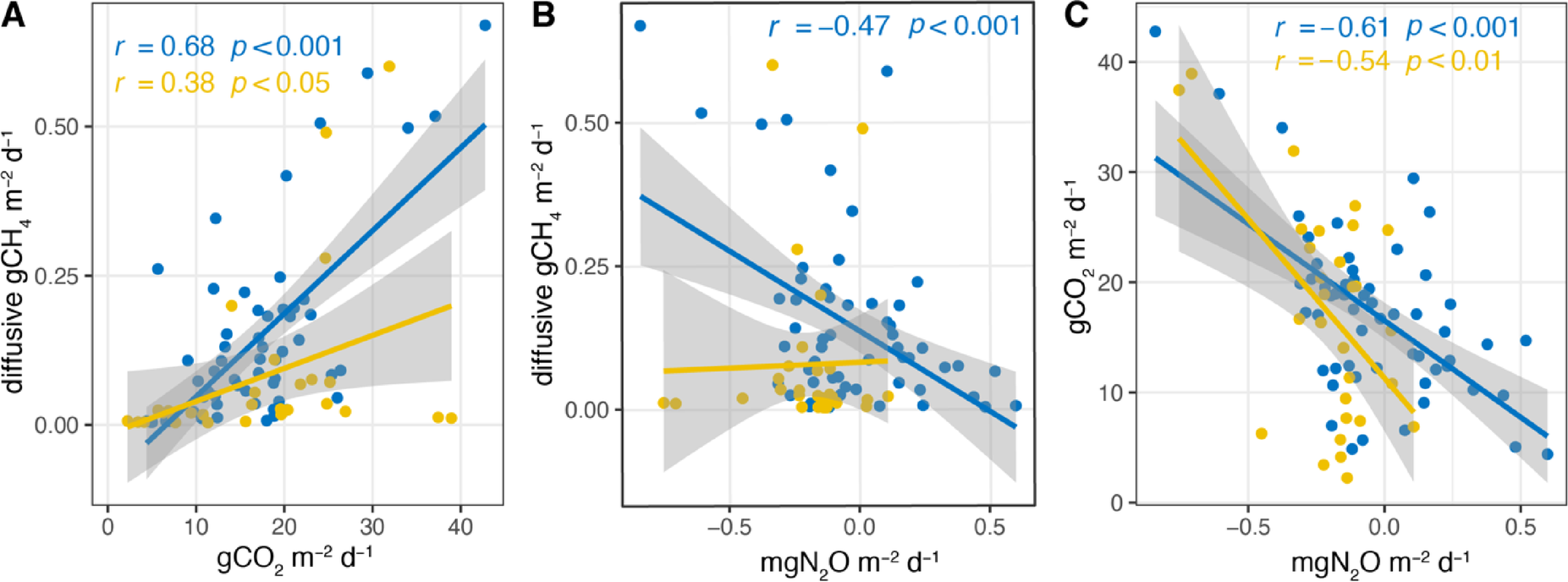

Scatterplots showing the relationships between diffusive CH4, and CO2 flux (A), diffusive CH4 and N2O flux (B), CO2 and N2O flux (C) during the first and second rotations. The color of regression lines and coefficients (r) corresponds to the rotation: blue for the first rotation and yellow for the second rotations. Only statistically significant regression coefficients are displayed, with significance determined at p < 0.05. Shaded areas are 95% confidence intervals.
