Fig. 3
From: Fatigue crack propagation analysis considering the dynamic crack-load coupling effect

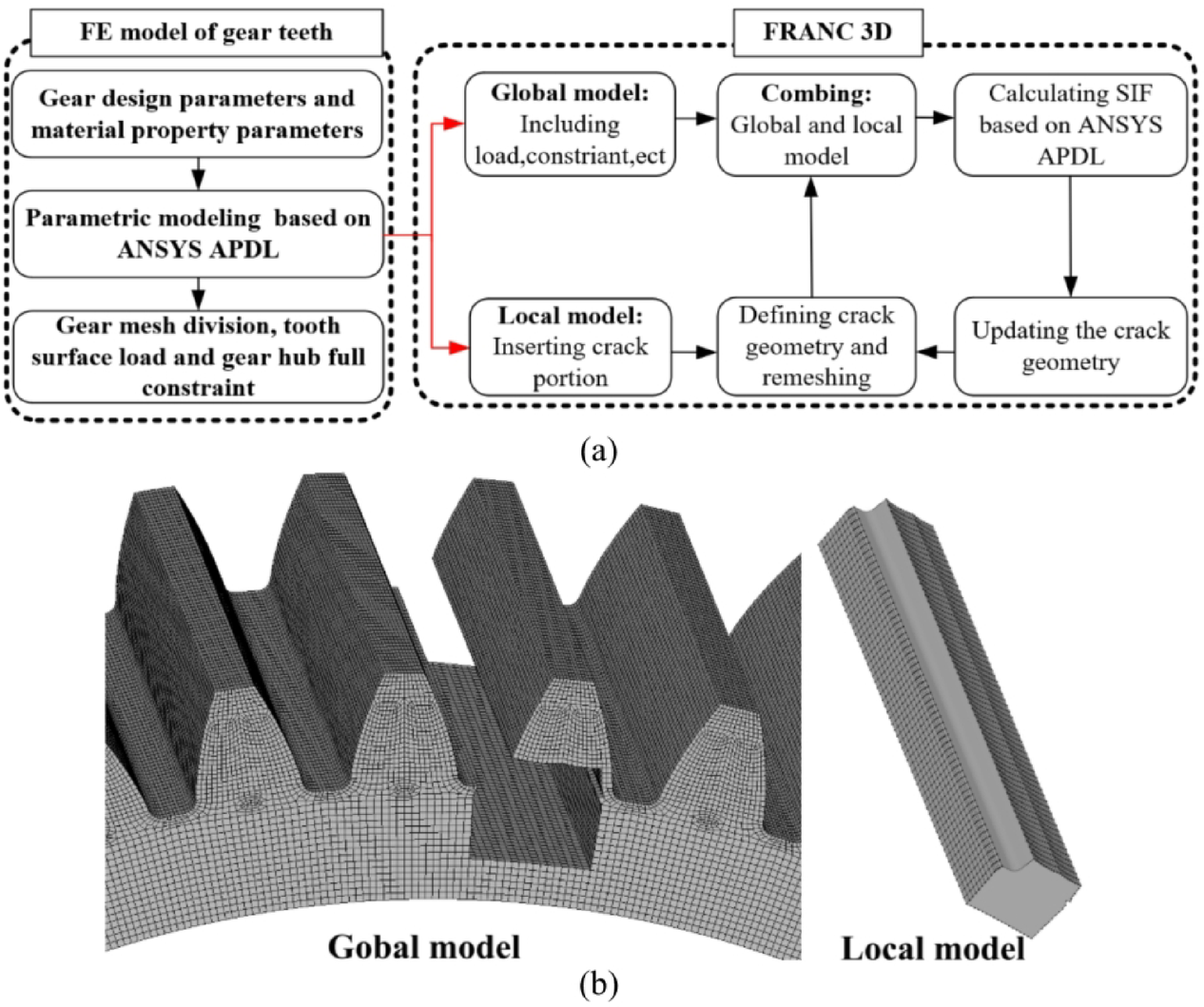

(a) The analysis flowchart of the gear tooth fillet crack propagation using FRANC3D40; (b) the main structure and sub-structure.
