Fig. 9
From: Fatigue crack propagation analysis considering the dynamic crack-load coupling effect

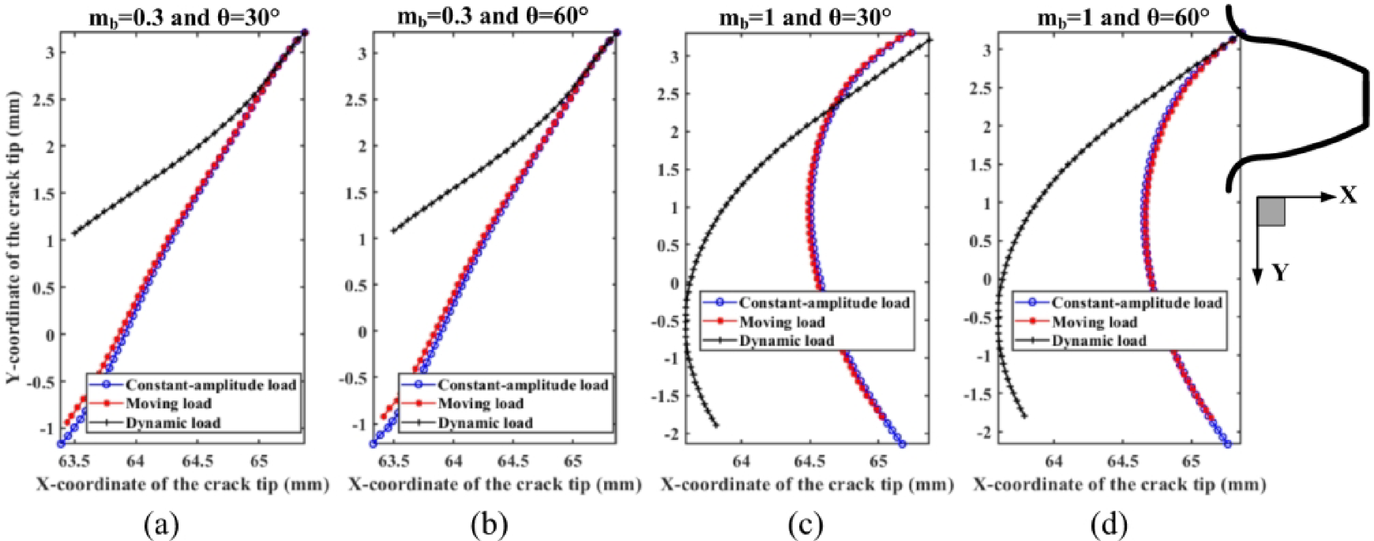

The propagation path of fatigue cracks at the gear fillet under different loading boundary conditions with different backup ratios mb and different initial angles θ.
