Fig. 5
From: Revealing neural resonance in neuronal ensembles through frequency response tests

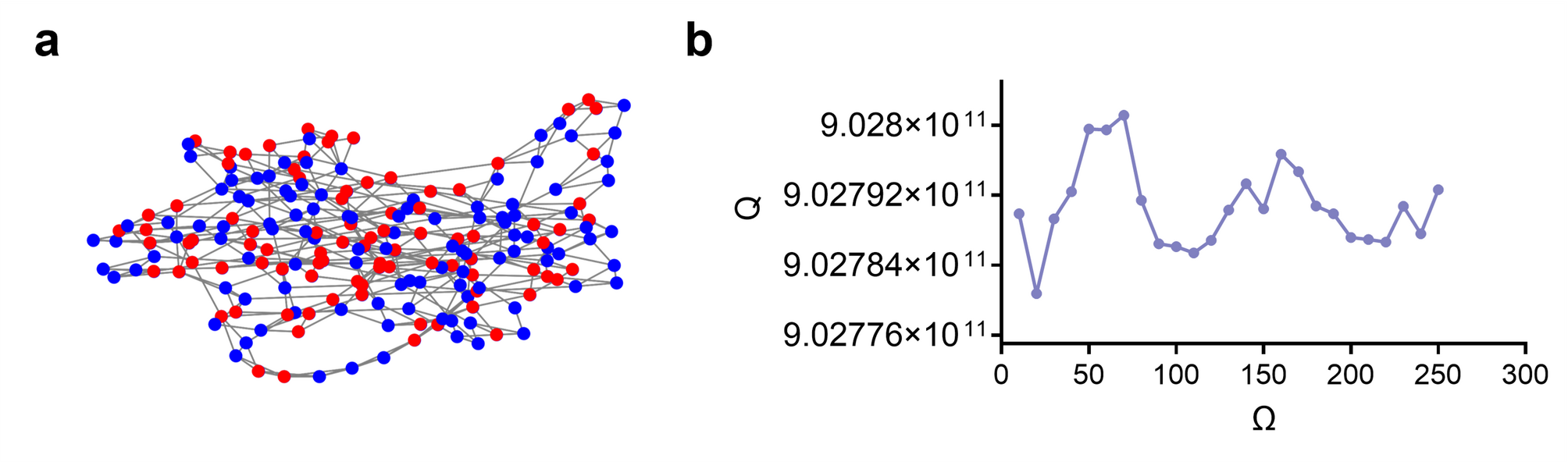

Computational modeling of resonance-like phenomena. (a) Small-world neural network topology (N = 200 nodes, reconnection probability p = 0.2). Red dots: intrinsic signal nodes; red and blue dots: external stimulation signal nodes. (b) Simulated response factor Q vs. external stimulation frequency Ω (10–250 Hz), with peaks at 50–70 Hz and 140–160 Hz, qualitatively matching experimental peaks with minor offsets due to model simplifications.
