Fig. 7

From: Cell type- and species-specific regulation of hepatic lncRNAs by TCDD-activated aryl hydrocarbon receptor

Fig. 7The alternative text for this image may have been generated using AI.

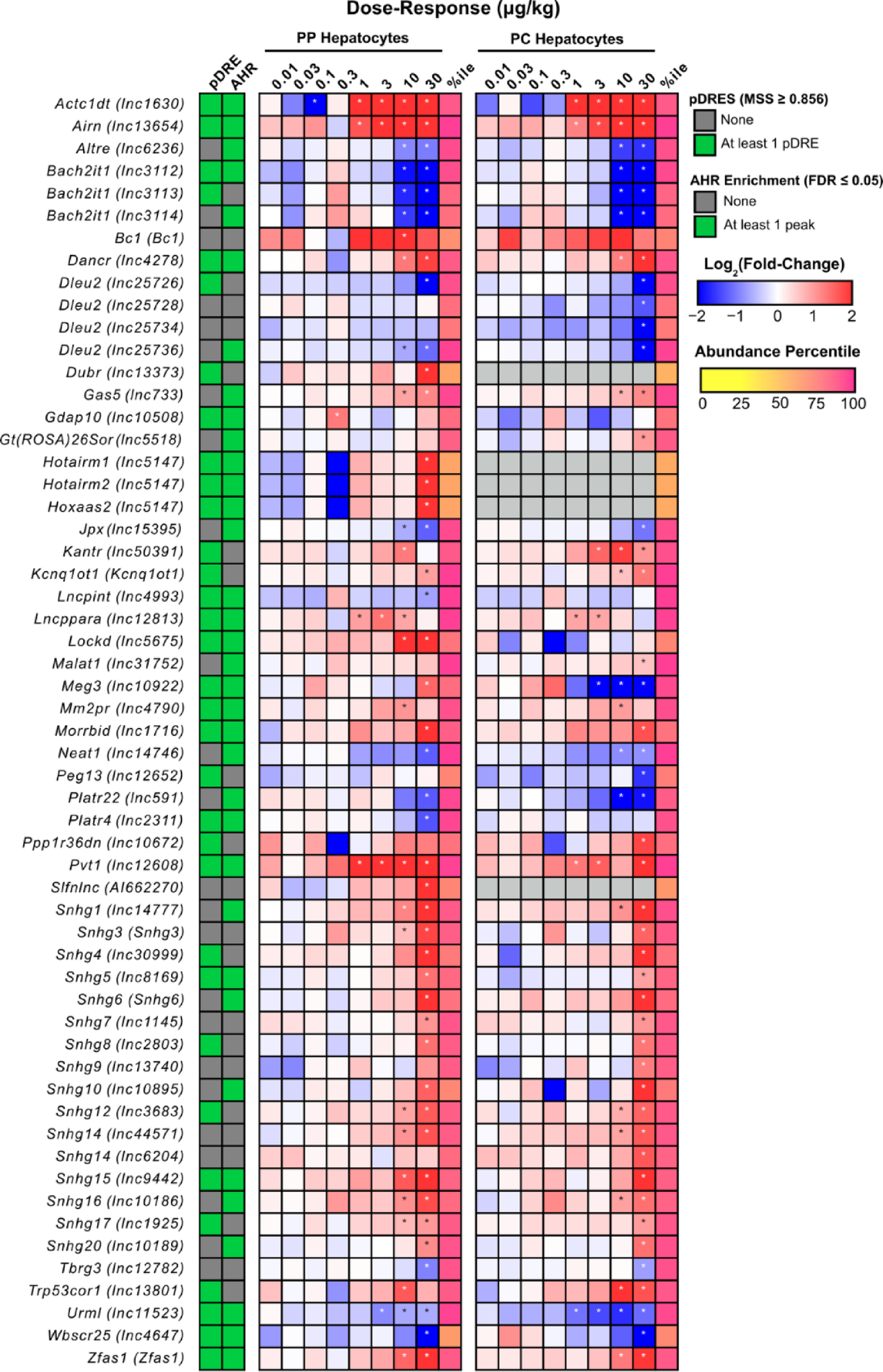

MGI annotated lncRNAs differentially expressed in hepatocytes. Hepatocyte lncRNAs were annotated with data from the Mouse Genome Informatics (MGI) database65. lncRNAs were considered differentially expressed (*) when the |fold-change| ≥ 1.5 and the p-value ≤ 0.05. lncRNAs were ranked by transcript count abundance, with the most highly expressed transcripts shown in pink (100th percentile) and the lowest expressed transcripts in yellow (0th percentile). The presence of putative dioxin response elements (pDREs) and AHR genomic enrichment within the gene locus and 10 kb upstream of the transcription start site (TSS) is indicated for each gene (green). PC (pericentral), PP (periportal).
