Fig. 8
From: Ionization enhancement in radio-frequency plasma thrusters with applied static magnetic fields

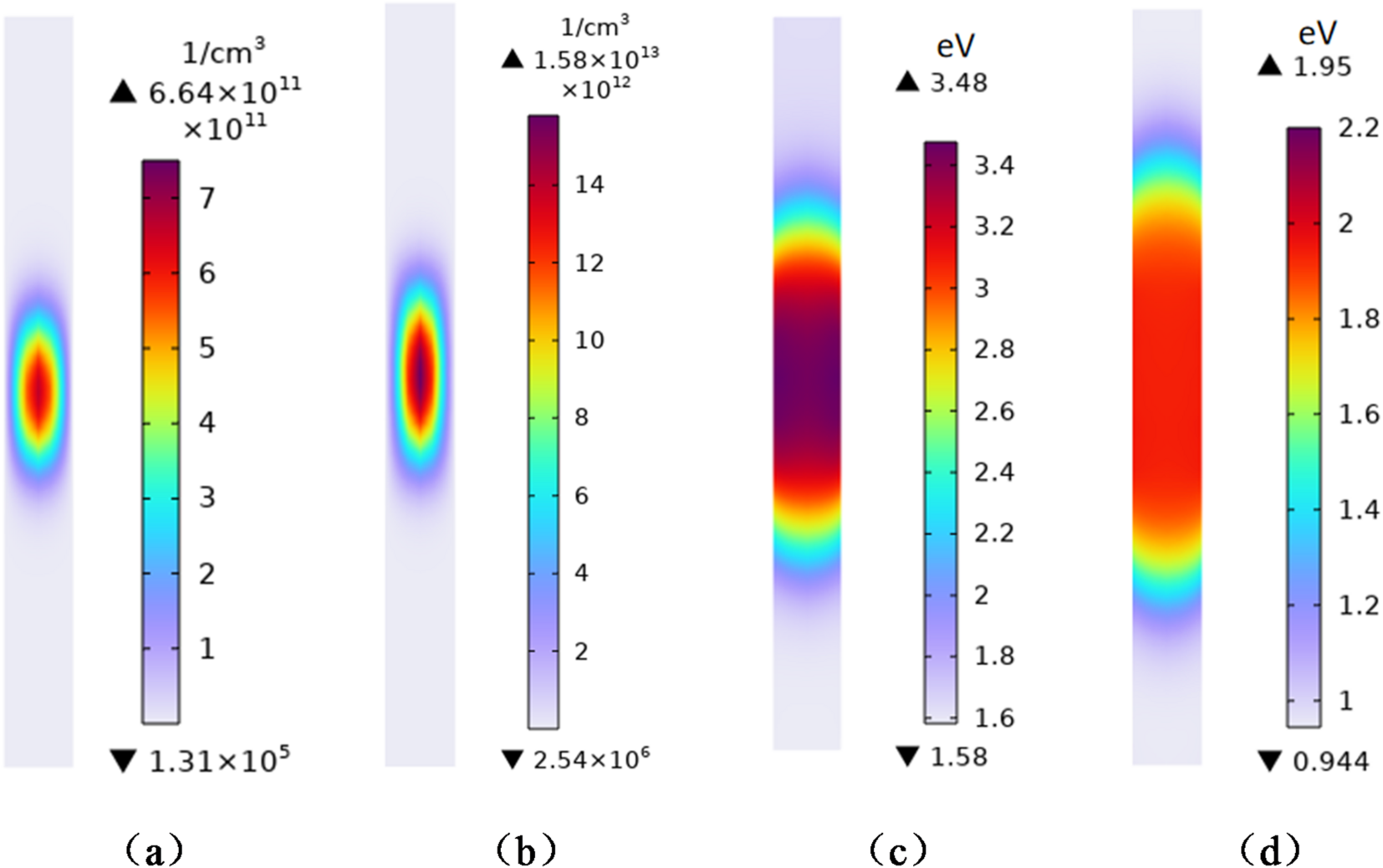

The simulation results of electron density and electron temperature, where (a) is the electron density diagram without permanent magnet constraint, (b) is the electron density diagram without permanent magnet constraint, (c) is the electron temperature diagram without permanent magnet constraint, and (d) is the electron temperature diagram under permanent magnet constraint.
