Fig. 7

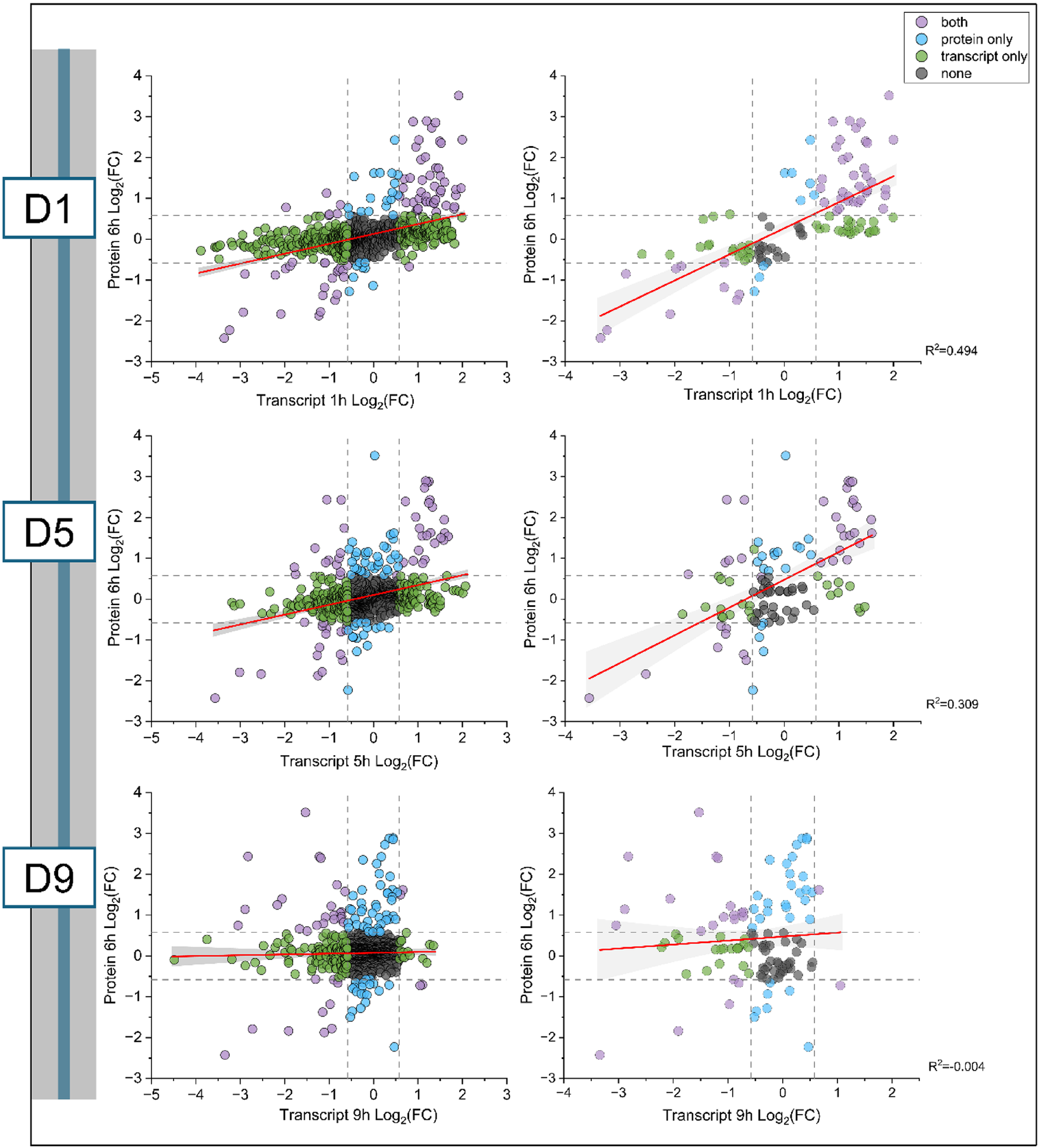

Comparison of proteomics and transcriptomics data. Scatterplots show the comparison of proteomics and transcriptomics data. The left panel shows the correlation of all the identified proteins in the dark cycle without nitrate (D-) condition that were common between the proteomic and transcriptomic data, and the right panel shows the correlation between significantly changing proteomics data in D- compared to the pooled control of transcriptomics data. Proteomics data at 6 h into the dark was compared with transcriptomics data collected at 1 h, 5 h, and 9 h into the dark respectively. The color of the data points indicates if the proteins were identified with a threshold fold change of ± 1.5 (or log (foldchange = ± 0.58) under both conditions (purple), protein only(blue), transcript only(green), or none (grey).
