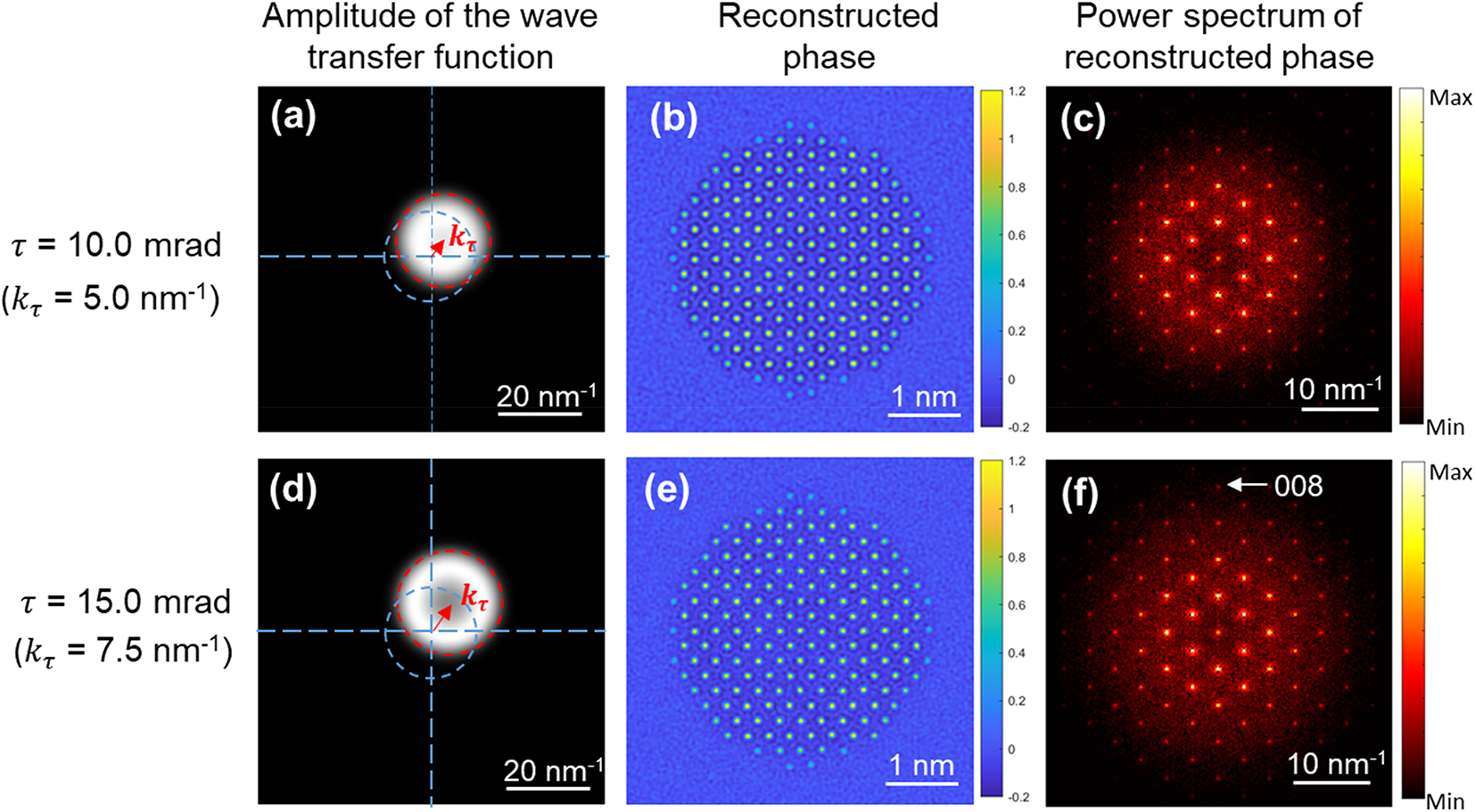

Fig. 2

Reconstructions of simulated gold particle data with different tilt magnitudes. (a)-(c) and (d)-(f), Amplitude of the effective wave transfer function, reconstructed phase, and power spectra of the reconstructed phase from datasets with tilt magnitudes of 10.0 mrad and 15 mrad, respectively. These tilt angles give frequency shifts in reciprocal space of 5.0 nm⁻¹ and 7.5 nm⁻¹, respectively. The gold particle was oriented along < 110>. The phase scale bars in (b) and (e) are in radians. Power spectra intensities are weighted as a power of 0.2 for visualisation of high frequency information.
