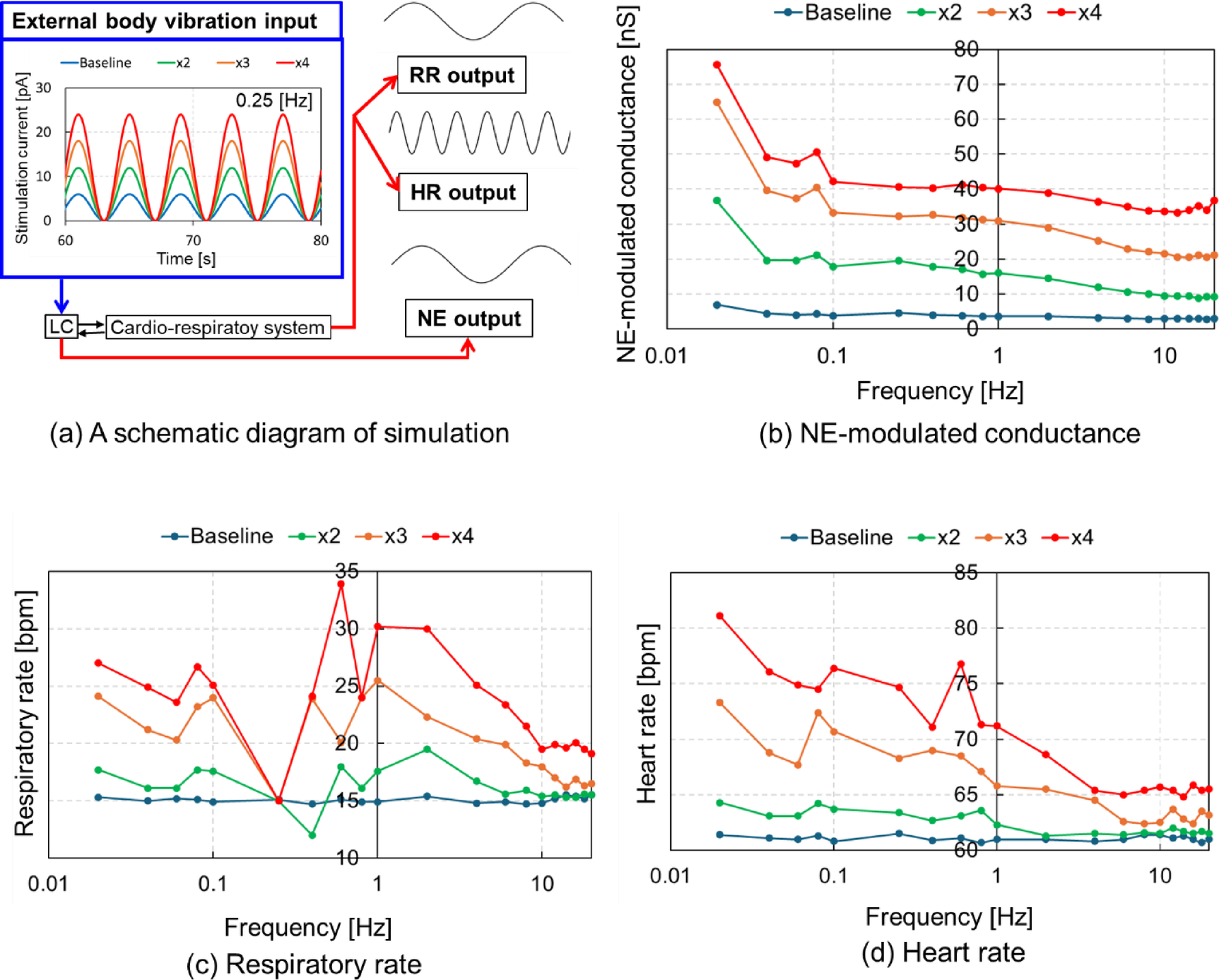

Fig. 3

Logarithmic representation of mean values of NE-modulated conductance, RR, and HR from 700 s and 720 s for different frequencies with various amplitudes of vibrational input. (a) Schematic diagram of simulation, (b) NE-modulated conductance, (c) respiratory rate, (d) heart rate.
