From: Integrated crew for heating and dehumidification of air-source heat pump for tobacco curing

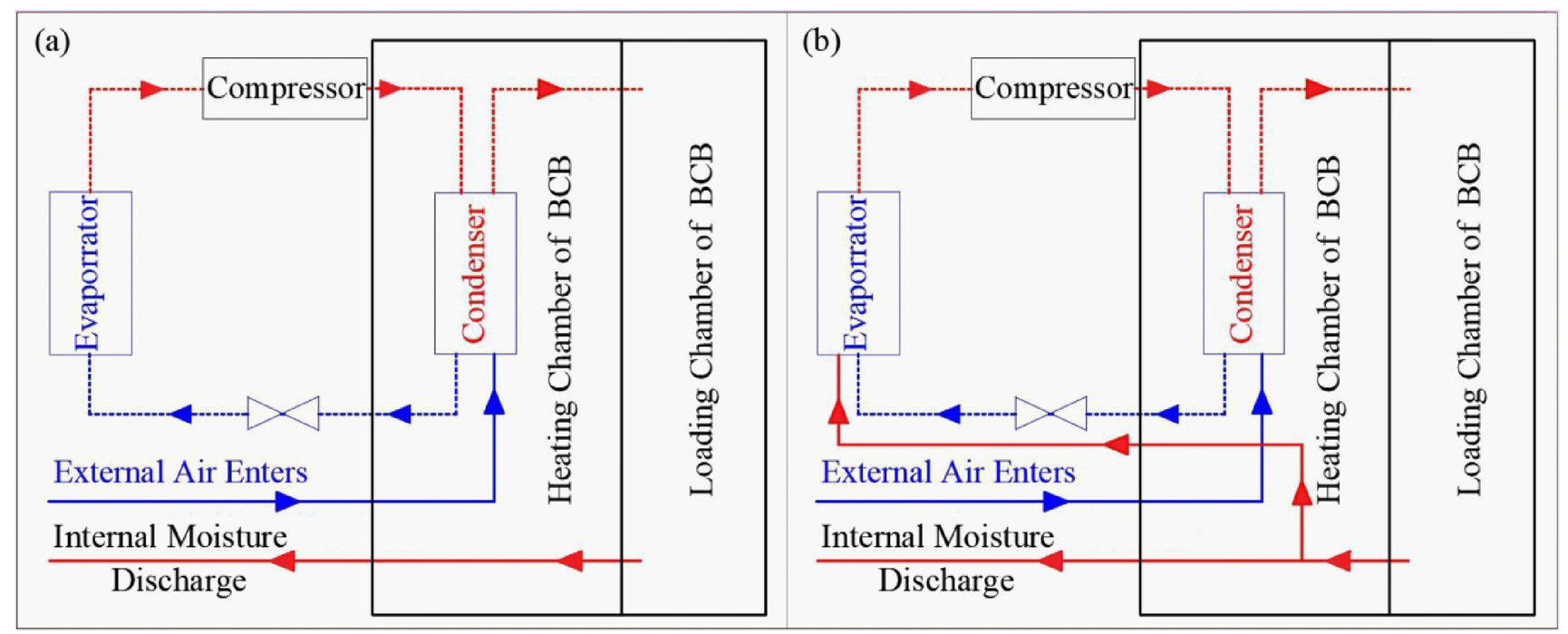

The structure of open or semi-open HP used for air exchange of the current BCB for TC: (a) “open” HP used for air exchange, (b) “semi-open” HP for air exchange. Blue solid line: Low temperature and low humidity circuit, Red solid line: High temperature and high humidity circuit.
