Fig. 2 | Scientific Reports

Fig. 2

From: Poly-L-Ornithine coated plant scaffolds support motor recovery in rats after traumatic spinal cord injury

Fig. 2

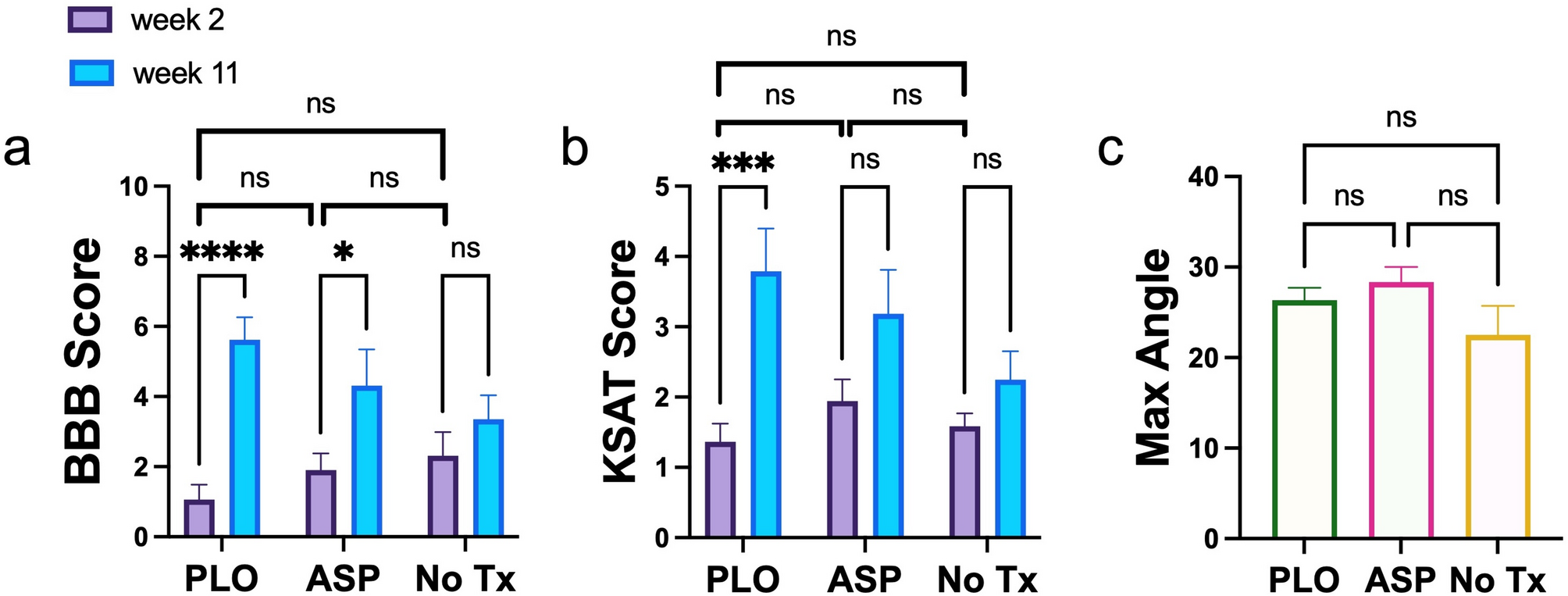

Locomotor assessments after complete spinal cord transection. (A) Average BBB score of each experimental group at week 2 after SCI compared to week 11 after SCI (2way ANOVA Uncorrected Fisher’s LSD; ****P < 0.0001, *P = 0.0158; mean ± s.e.m, n = 11 PLO animals, n = 9 ASP animals, n = 8 No Tx animals). (B) Average KSAT swim assessment score of each experimental group at week 2 after SCI compared to week 11 after SCI (2way ANOVA Uncorrected Fisher’s LSD; ***P = 0.0001; mean ± s.e.m, n = 11 PLO animals, n = 9 ASP animals, n = 8 No Tx animals). (C) Average maximum angle achieved by each experimental group in inclined plane assessment at final week (mean ± s.e.m, n = 11 PLO animals, n = 9 ASP animals, n = 8 No Tx animals).
