From: Very simple and ultra-sensitive fluorescence resonance energy transfer aptasensor for turn-on C-reactive protein detection in biological matrices

Fig. 4

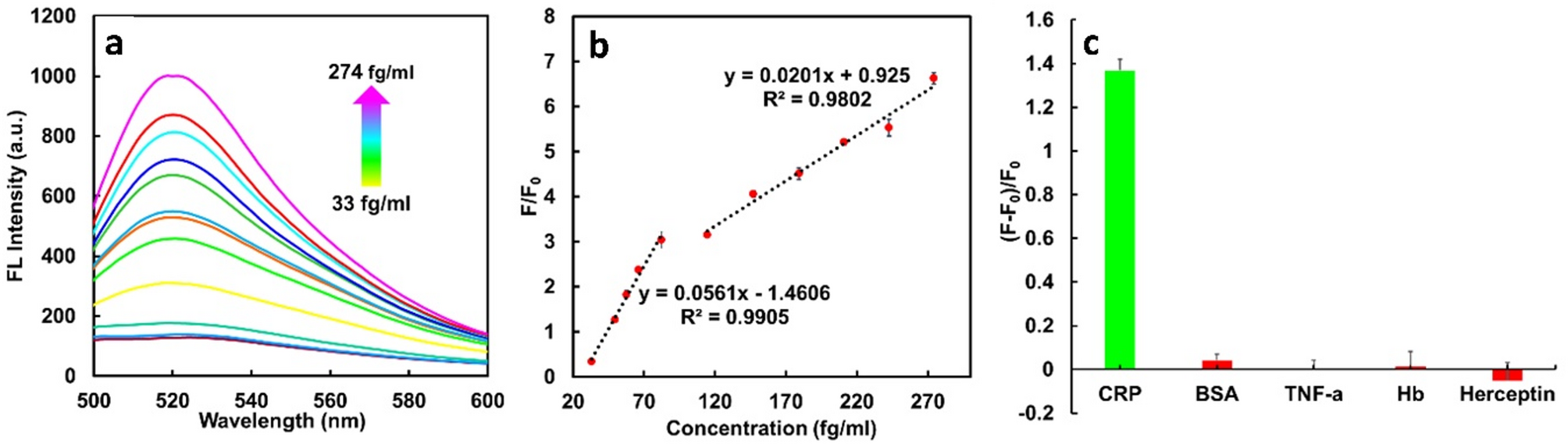

Go-apt CRP detection. (a) The GO-apt aptasensor’s fluorescence emission spectrum based on CRP concentration ranges from 33 fg/ml to 274 fg/ml. (b) Fluorescence intensity ratio (F/F0) as a linear relationship versus CRP concentration. An expression of F/F0 (where F0 and F are the FAM fluorescence intensities at 520 nm without and with CRP). (c) CRP aptasensor specificity. In the presence of CRP, BSA, TNF- , Hb, Herceptin proteins (0.01 ng/ml), the fluorescence intensity rate (F-F0)/F0 of a fluorescent aptasensor based on GO was measured. Where at 520 nm, F0 and F are the fluorescence intensities without and with CRP detection (excitation: 450 nm).
