From: Elucidating the underlying mechanism of mechanical stress-induced impact on mRNA-LNP structure

Fig. 4The alternative text for this image may have been generated using AI.

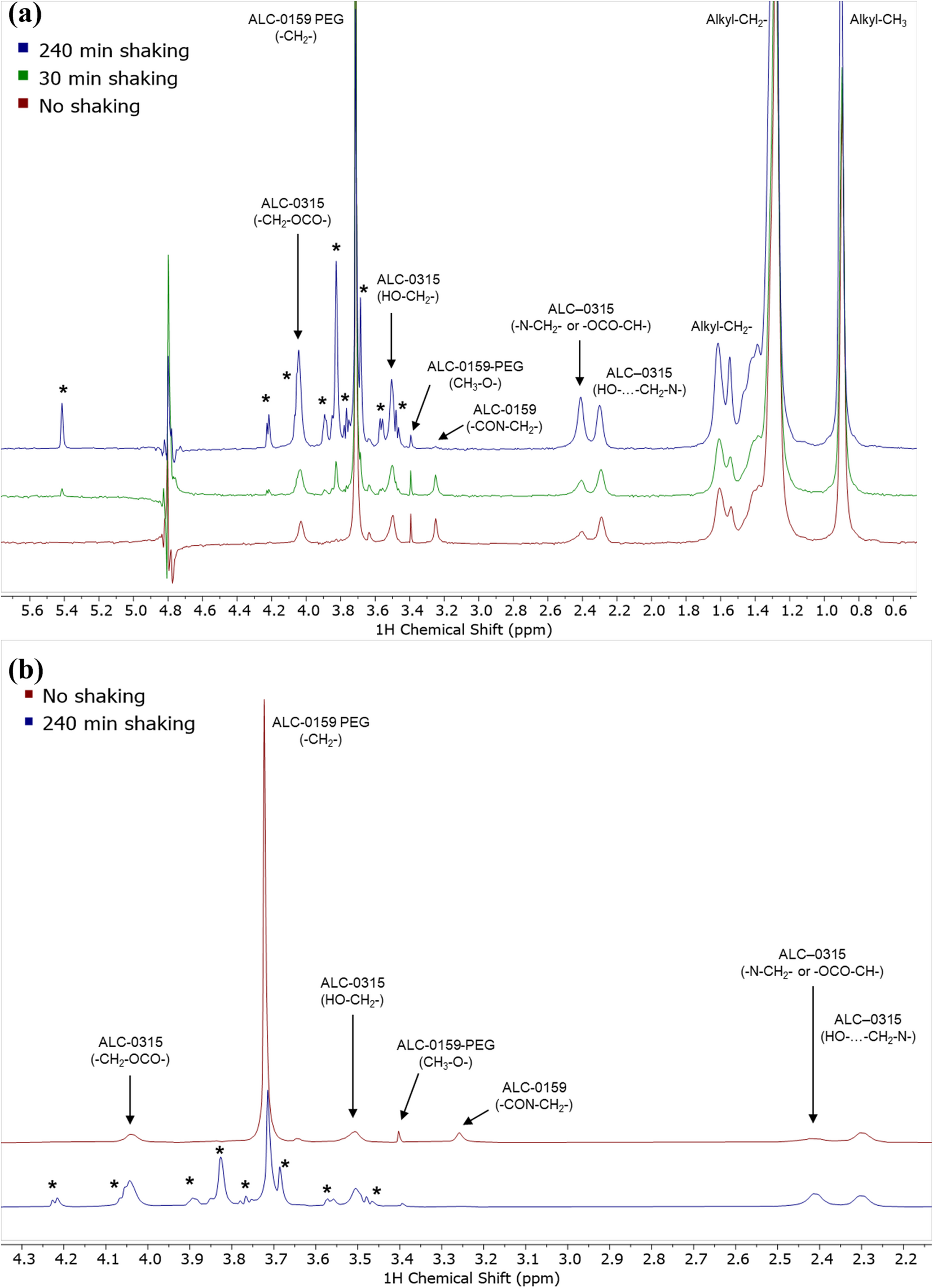

(a) NMR spectra for the control and shaken mRNA-LNP samples. Additional peaks from sucrose are indicated by asterisk symbols. The signal at approximately 4.78 ppm is a method artifact from water. (b) same as figure (a) with a focus on the region showing the decreasing ALC-0159 peaks and increasing ALC-0315 peaks.
