From: JUHCCR-v1: a database for hand-drawn electrical and electronics circuit component recognition

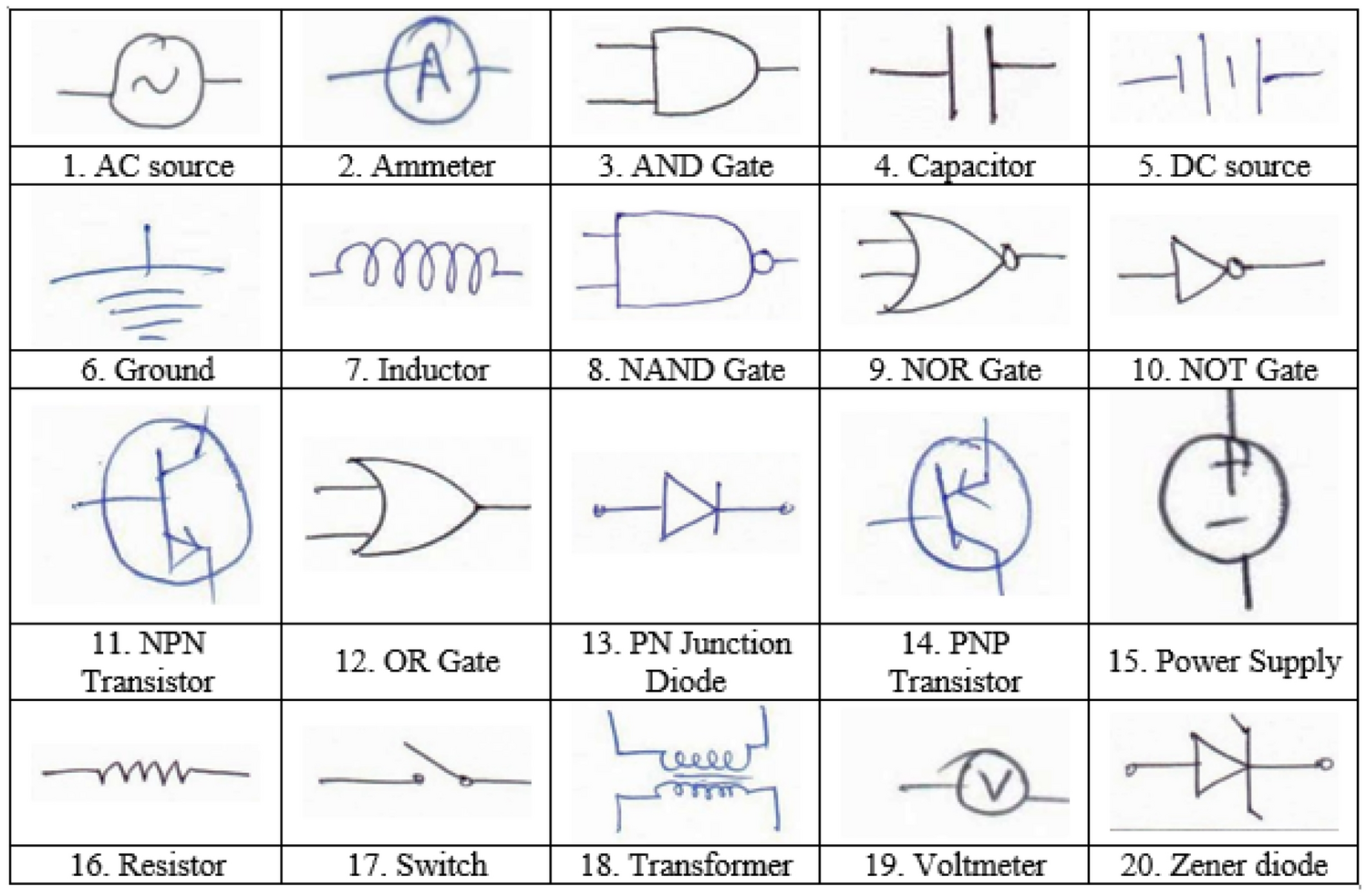

Sample images of analog and digital circuit components considered here. Numbers preceding the name of circuit components indicate the class number of the corresponding circuit component used in our dataset.
