Fig. 9
From: A seven-band co-integrated antenna for 5G/6G operations in sub-6 GHz and millimeter-wave frequencies

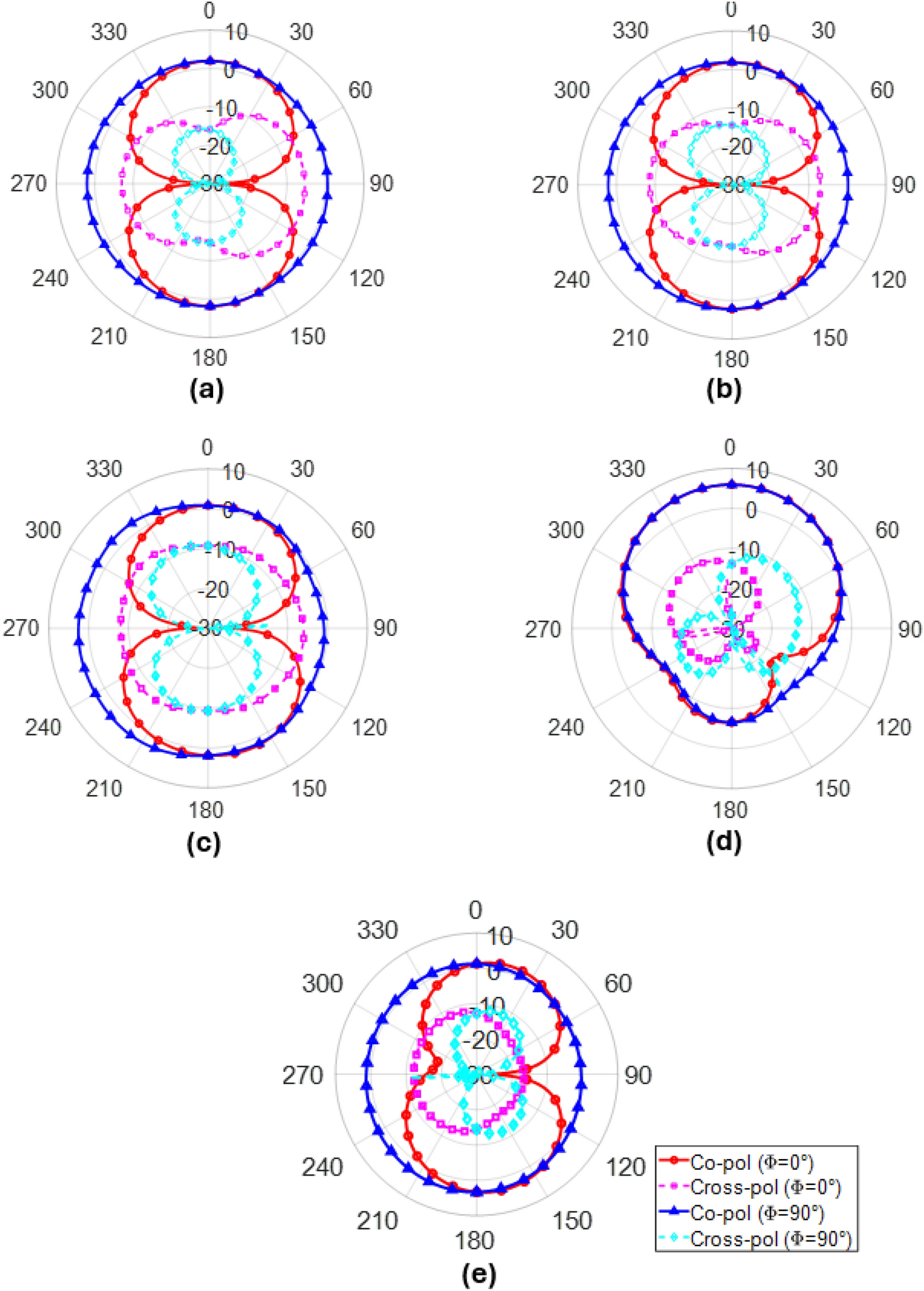

Simulated 2D radiation pattern(Co and Cross pol) of single element at (a) G1: 760MHz, (b) G2: 1.7GHz, (c) G3: 2.25GHz, (d) G4: 3.6GHz, (e) G5: 4.5GHz.
