From: Ferroptosis-related gene analysis revealing novel biomarkers and therapeutic targets in diffuse large B-cell lymphoma

Fig. 7

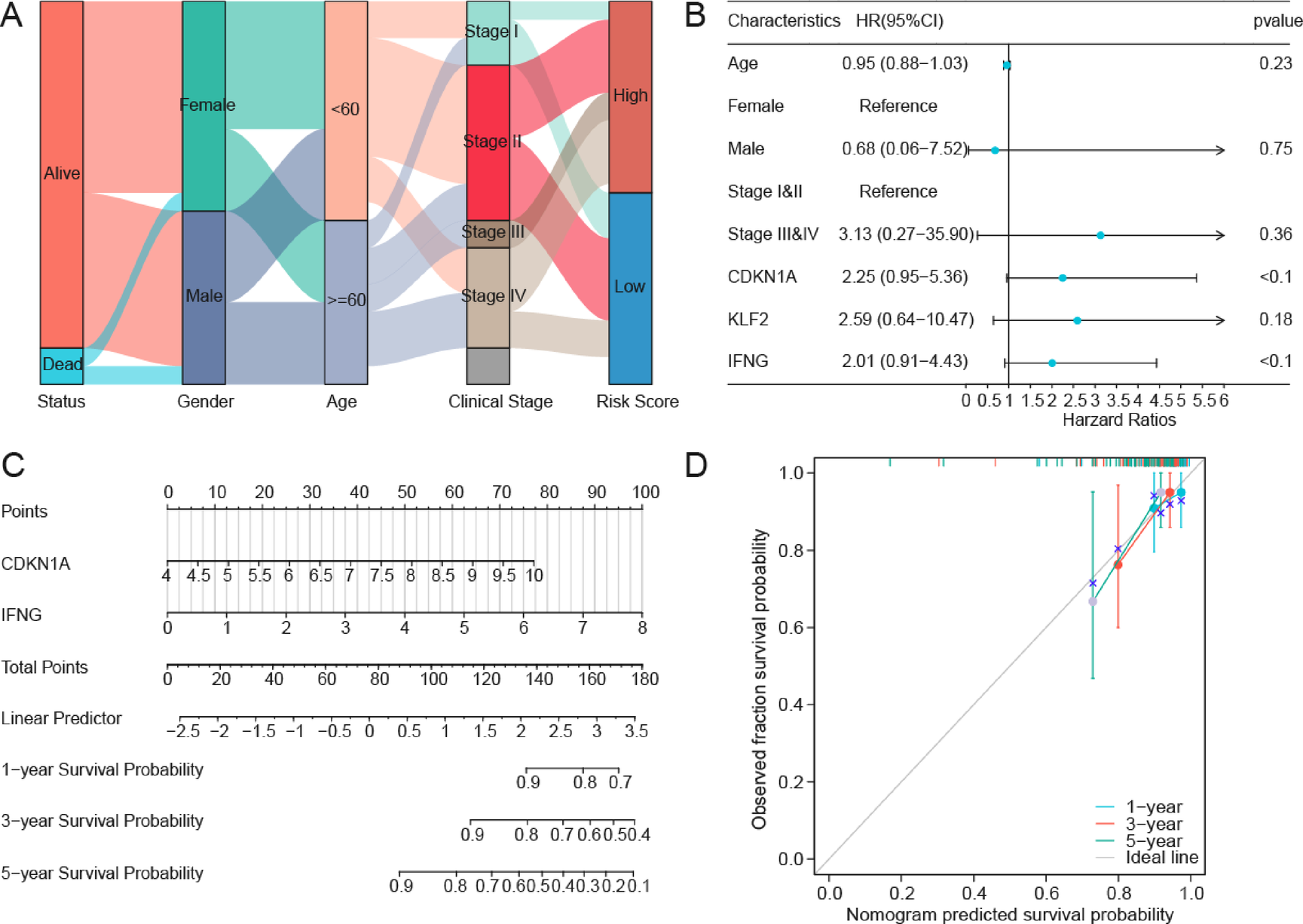

Cox Regression Analysis of DLBCL. A. Sankey diagram of clinical pathological characteristics in TCGA-DLBCL dataset. B. Forest plot of univariate Cox regression analysis for clinical information and three key genes. C–D. Prognostic nomogram (C) and calibration curve (D) from Multivariate Cox Regression Model. TCGA, The Cancer Genome Atlas; DLBCL, diffuse large B-cell lymphoma.
