Fig. 8
From: Maximizing waste heat recovery from a building-integrated edge data center

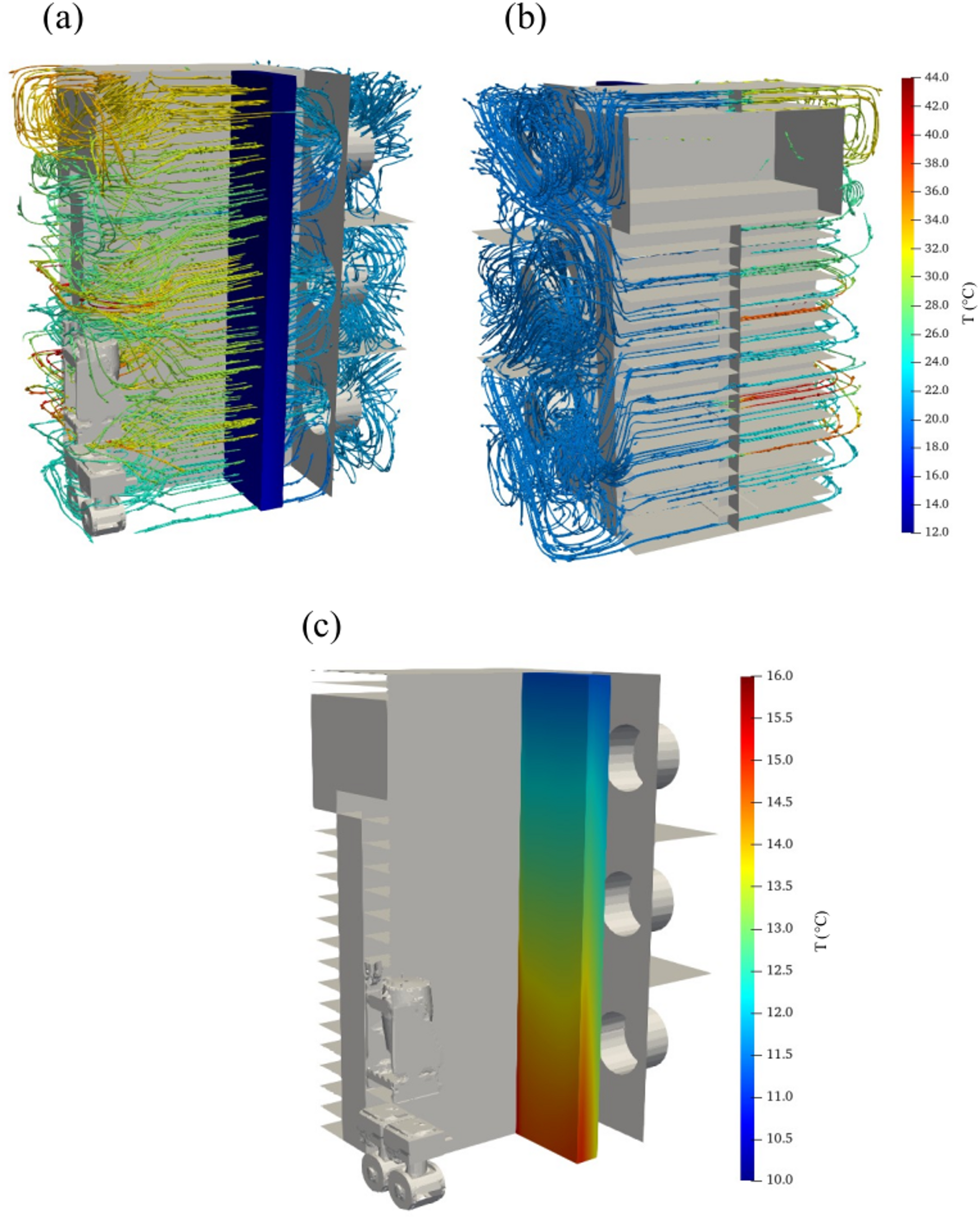

(a) Right view and (b) left view of the flow structures and (c) temperature distribution over the LTG under the working scenario of Test 1 (FS = 30% and VOR = 55%).
