From: Integration of Single-cell and bulk RNA sequencing data uncovers lymphatic metastasis-related prognostic genes and a predictive model in bladder cancer

Fig. 9

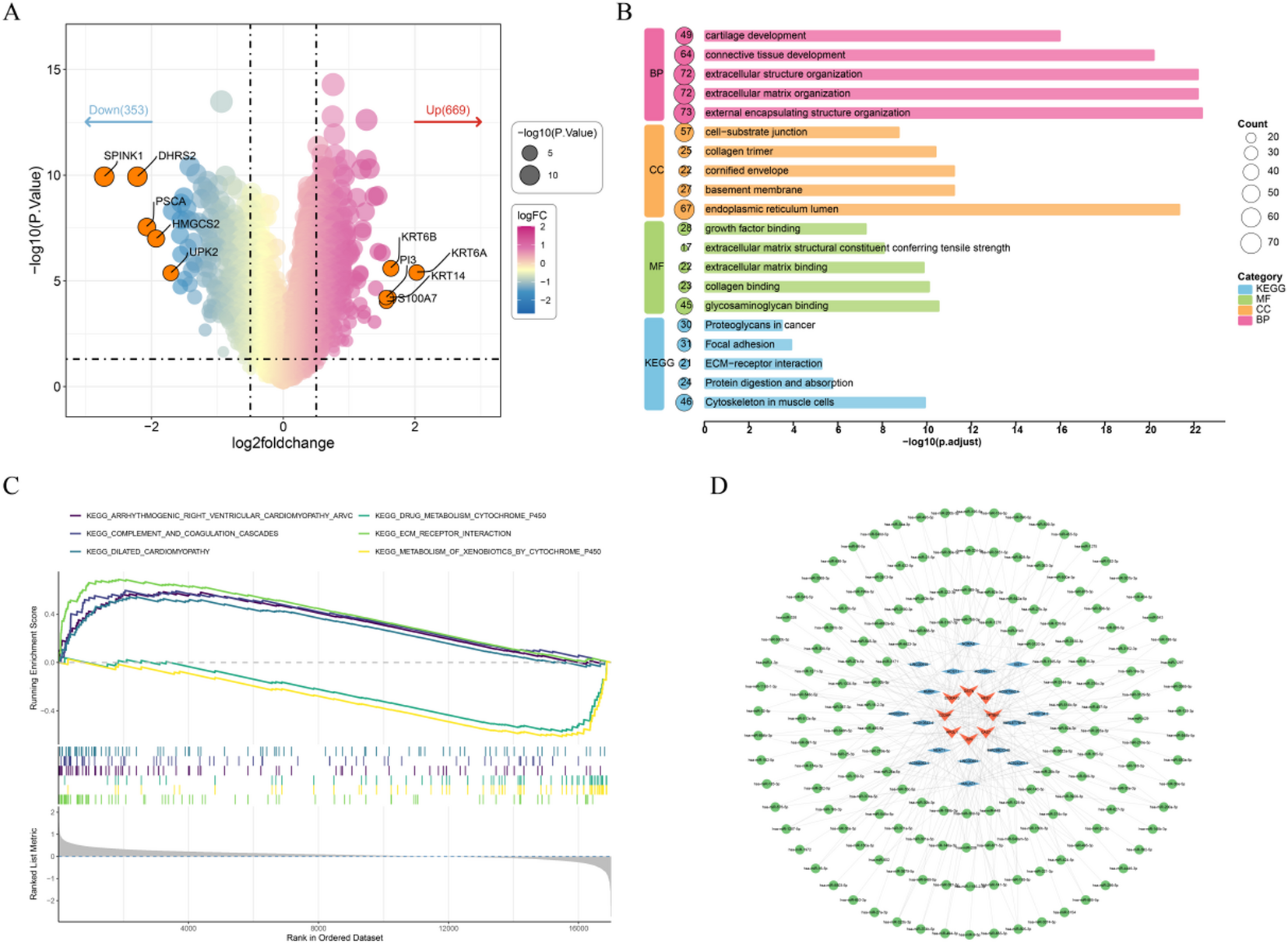

Differential and enrichment analysis between high- and low-risk groups. A: Volcano plot of DEGs identified by differential analysis between high- and low-risk groups. B: Enrichment analysis of DEGs. BP, Biological Process; CC, Cellular Component; MF, Molecular Function. C: Gene set enrichment analysis (GSEA) between high- and low-risk groups. D: Regulatory network of prognostic genes. Orange represents prognostic genes, green circles represent microRNAs (miRNAs), and blue represents long noncoding RNAs (lncRNAs).
