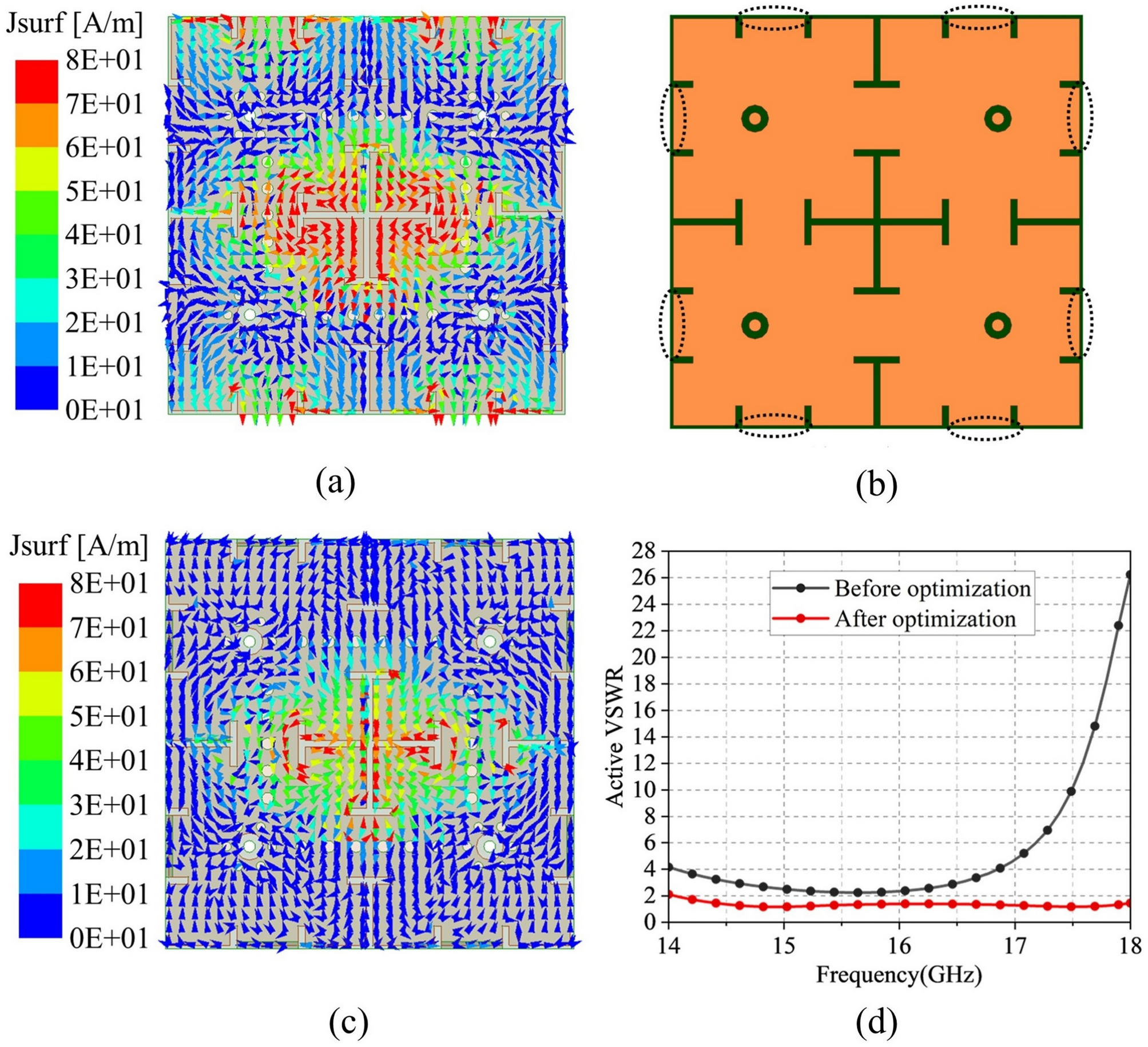

Fig. 5

Simulation results of the slot layer in Ku-band antenna: (a) Surface current distribution before optimization, (b) Optimized slot layer structure, (c) Surface current after optimization, and (d) Comparative active VSWR performance before and after optimization.
