From: Impact of four-dimensional computed tomography phase number on target coverage of four-dimensional robustly optimized lung stereotactic body radiotherapy

Fig. 1

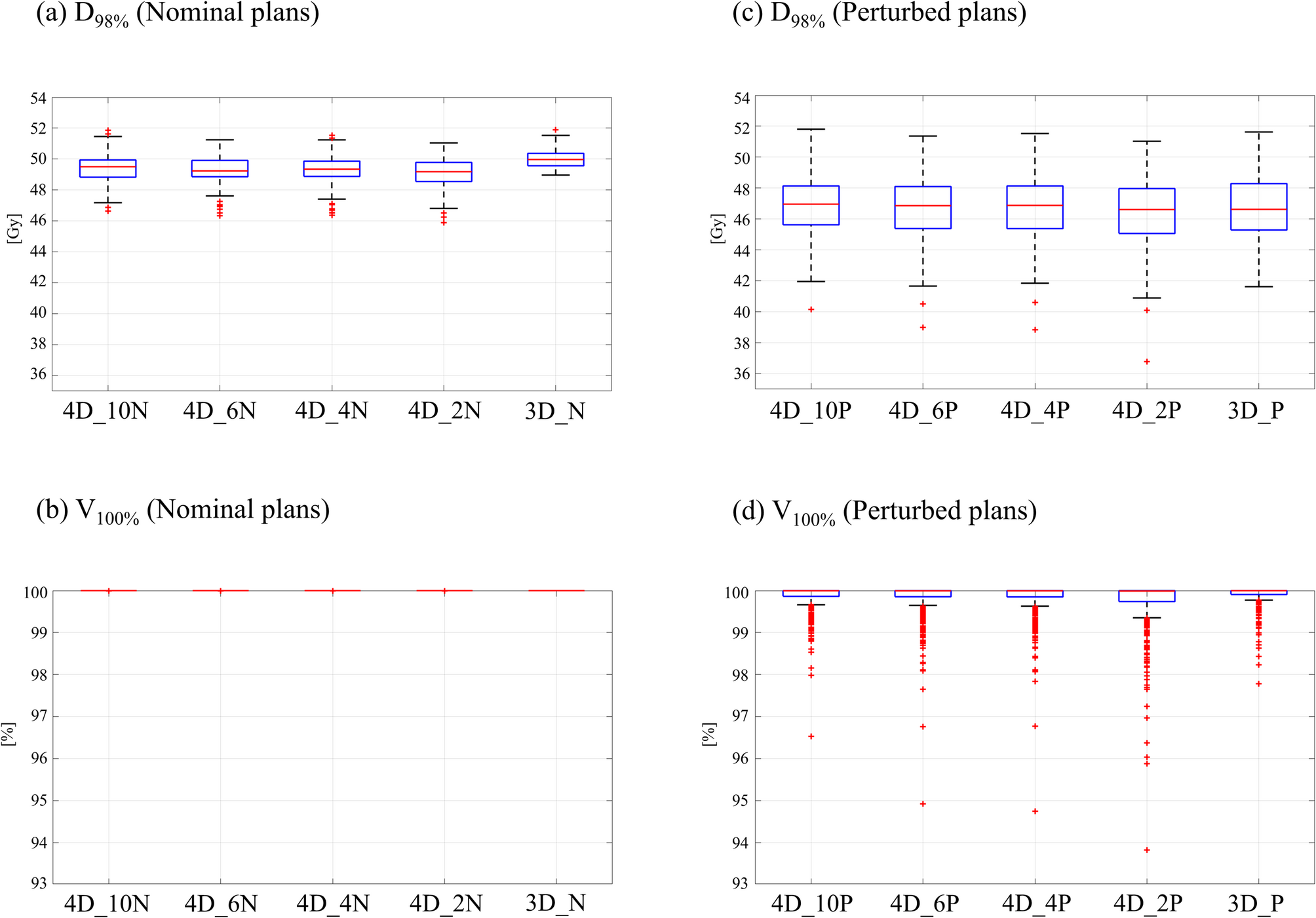

Box and whisker plots illustrating the D98% and V100% for the GTV of the 4D robustly optimized and internal target volume-based 3D plans. (a) D98% for nominal plans, (b) V100% for nominal plans, (c) D98% for perturbed dose plans considering setup uncertainty, and (d) V100% for perturbed dose plans considering setup uncertainty.
