Fig. 18
From: Dynamic power management based on Model Predictive Control and PSO for hybrid microgrid

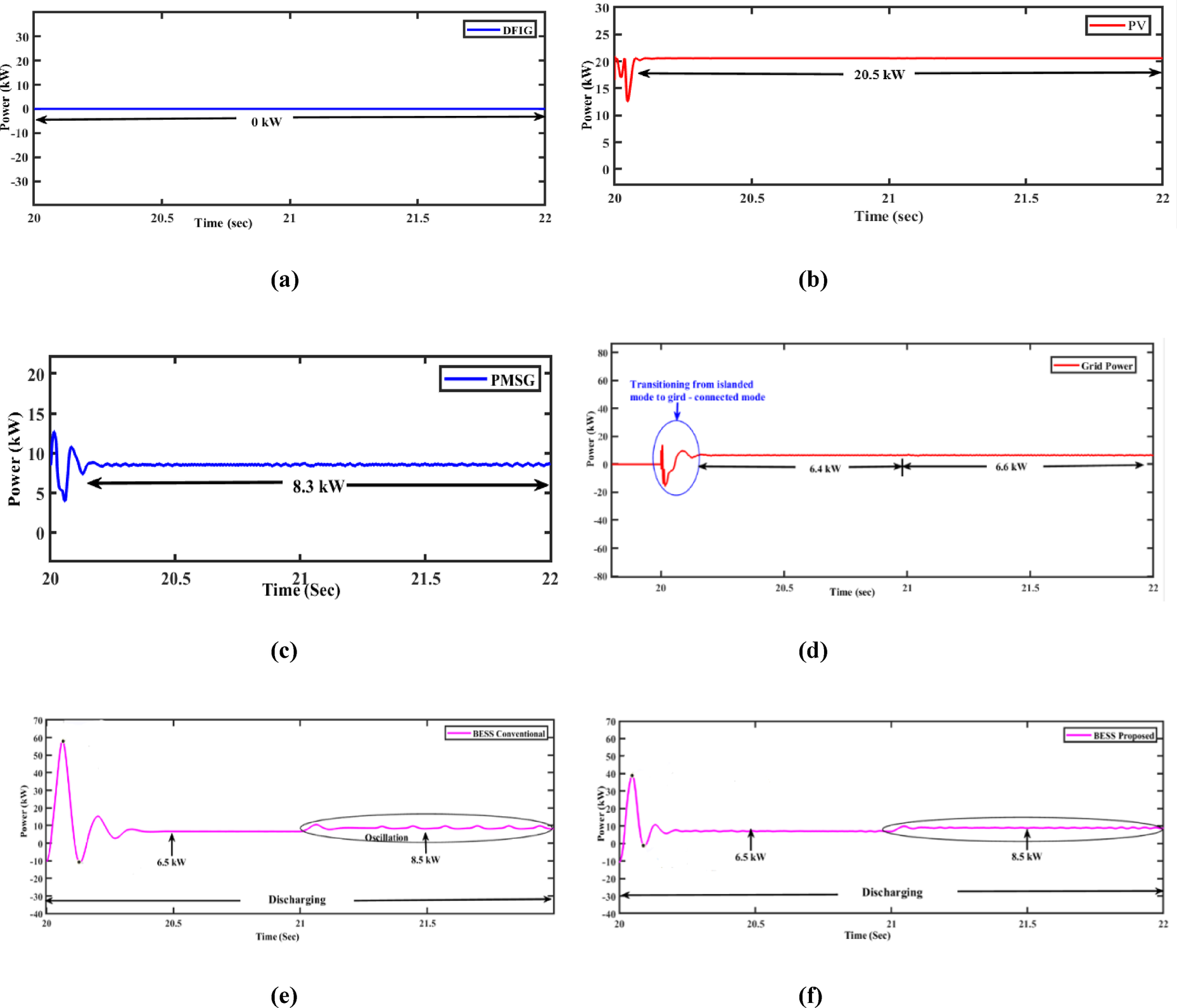

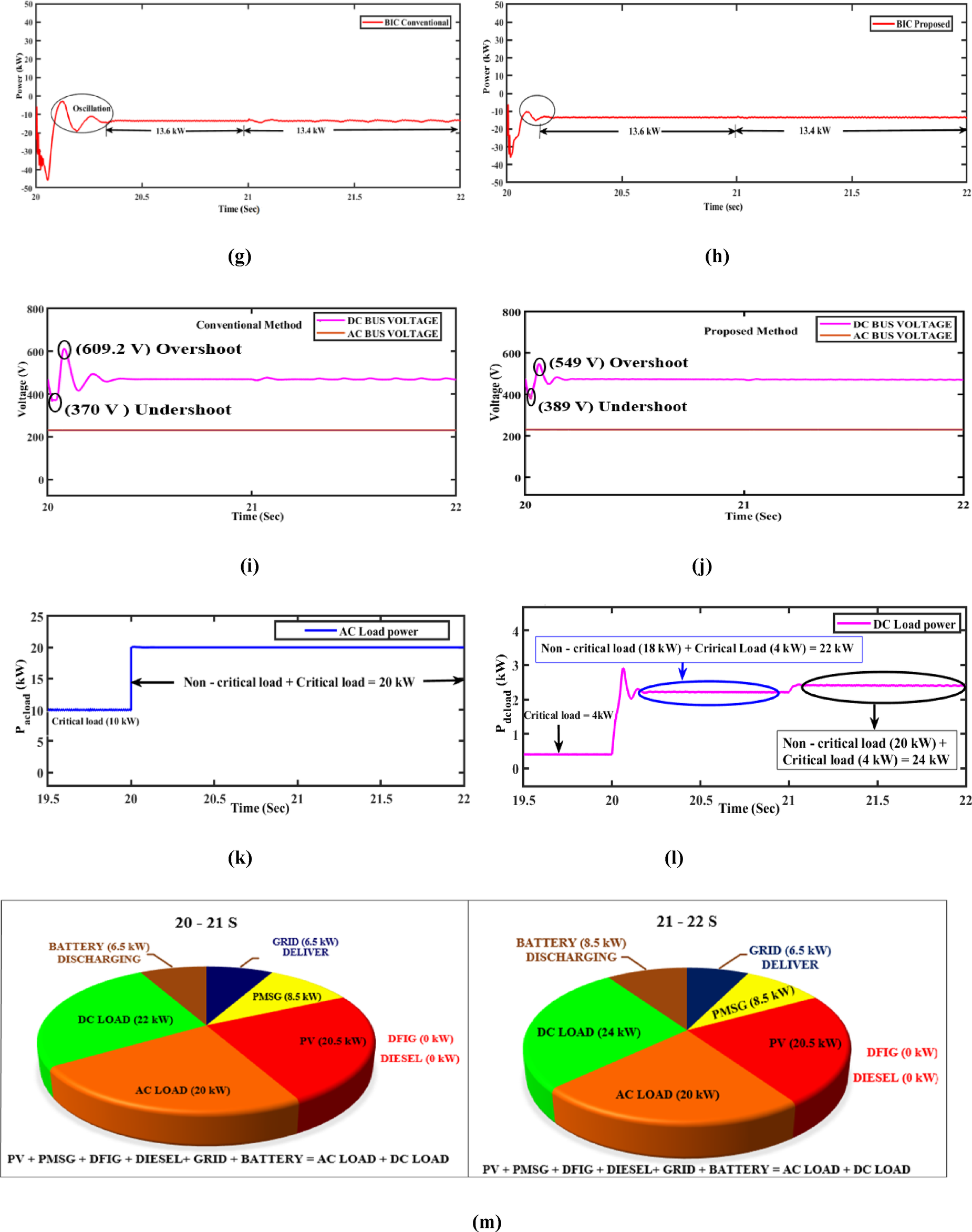

Performance of HMG for event 6. (a) Pdfig, (b) PPV, (c) Ppmsg, (d) Pgrid, (e) Pbdc (Conventional), (f) Pbdc (Proposed), (g) PBIC (Conventional), (h) PBIC (Proposed), (i) DC and AC bus voltage (Conventional), (j) DC and AC bus voltage (Proposed), (k) Load power in ACMG during event 6, (l) Load power in DCMG during event 6, (m) Visualization of power distribution in event 6.
