Fig. 11 | Scientific Reports

Fig. 11

From: Neural network-based optimal and adaptable power allocation for real-time FSO-RF communications using Jetson nano

Fig. 11The alternative text for this image may have been generated using AI.

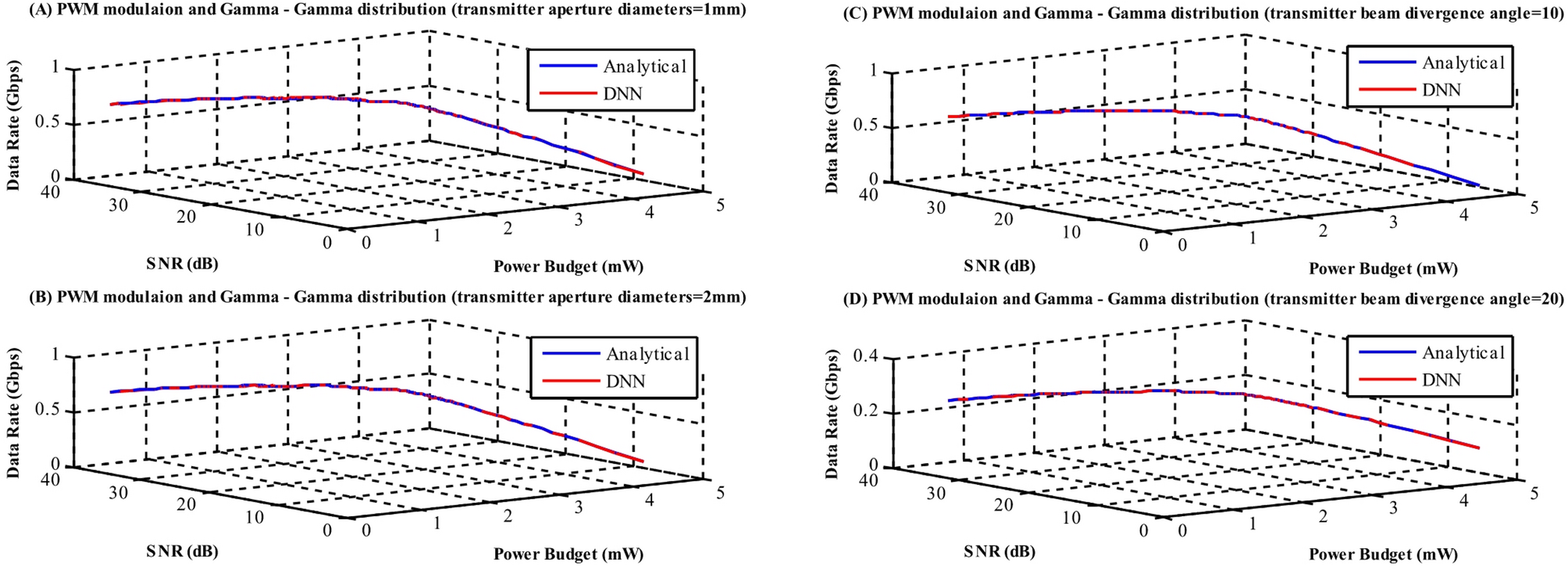

The data transmission rate varies in the embedded and analytical power allocation system based on the SNR when using PWM in a wireless optical communication channel. This analysis accounts for pointing errors and utilizes a Gamma-Gamma distribution model to address beam angle deviations of 10 and 20 degrees, as well as transmitter aperture diameters of 1 mm and 2 mm.
