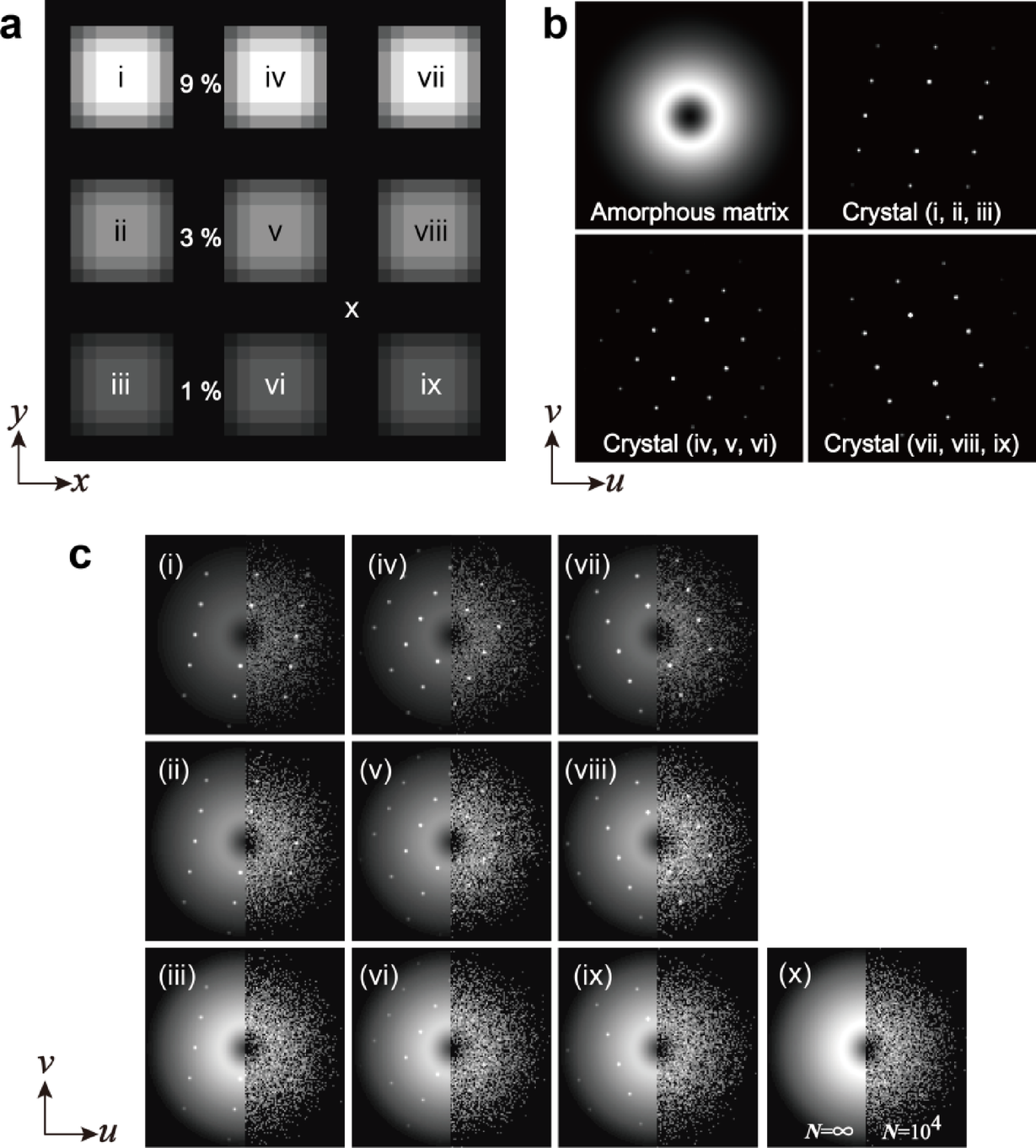

Fig. 10

Simulated 4D-STEM data consisting of one amorphous and three crystalline components. a Real-space structure. b Four components of diffractions. c Diffraction examples from areas (i)–(x). 4D-STEM data with Poisson noise was used in this study.
