From: Sex-dependent modulation of PCB-mediated toxicity from a proteomic and microbiome perspective

Fig. 3

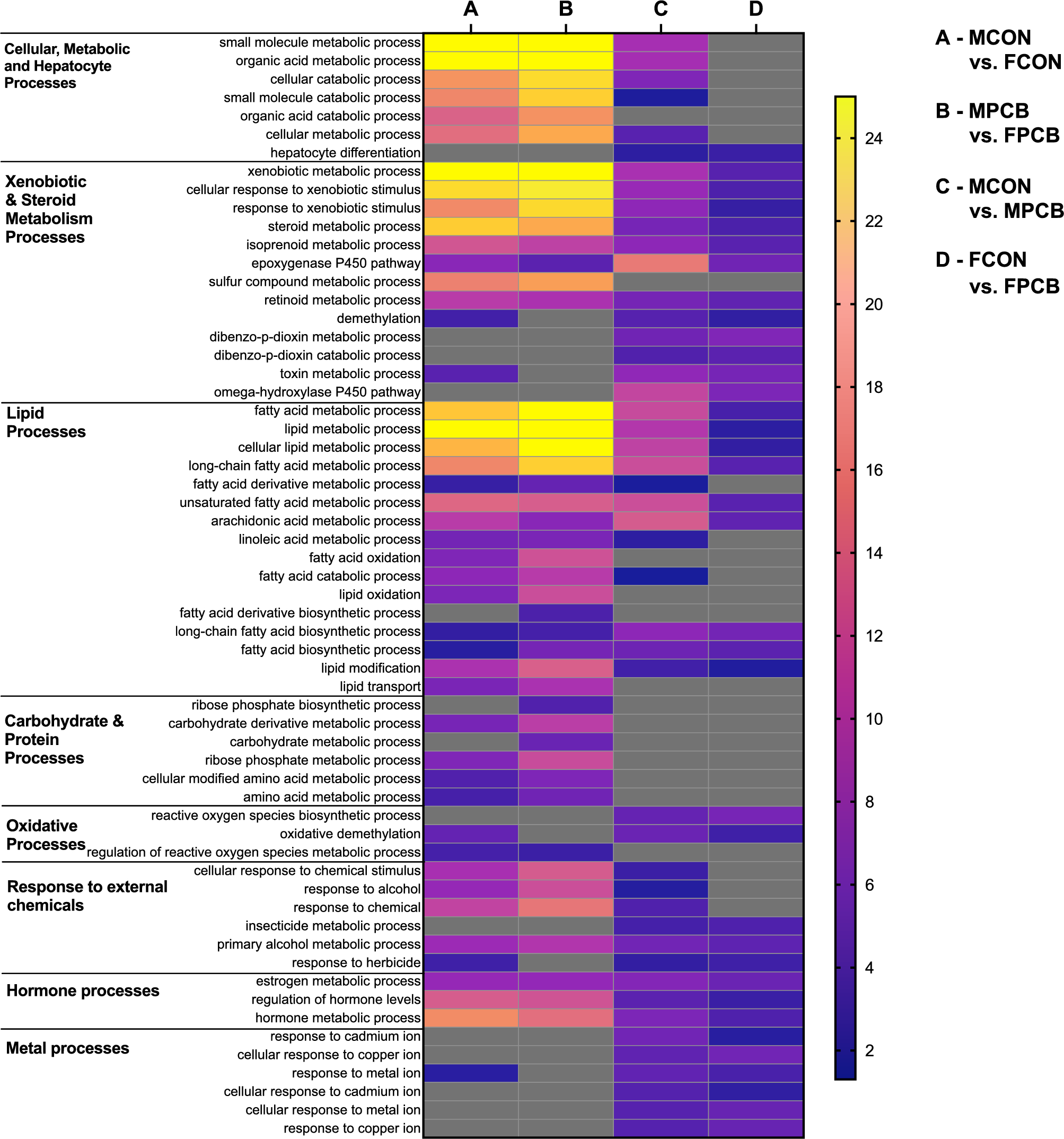

Sex and PCB effects on gene ontology (GO) processes. A heat map showing different processes that were altered by sex and/or PCB exposures according to the -log(p-value) for each comparison. The first experimental group mentioned in each comparison serves as the reference group. The processes were obtained by GO analysis enrichment of the different proteins altered by sex and/or PCB exposures using MetaCore. A - MCON vs. FCON, B - MPCB vs. FPCB, C - MCON vs. MPCB, D - FCON vs. FPCB.
