From: Integrated biostratigraphy of the Maastrichtian-Danian sequence in the southern Tethys with insights into paleoenvironmental implications

Fig. 4

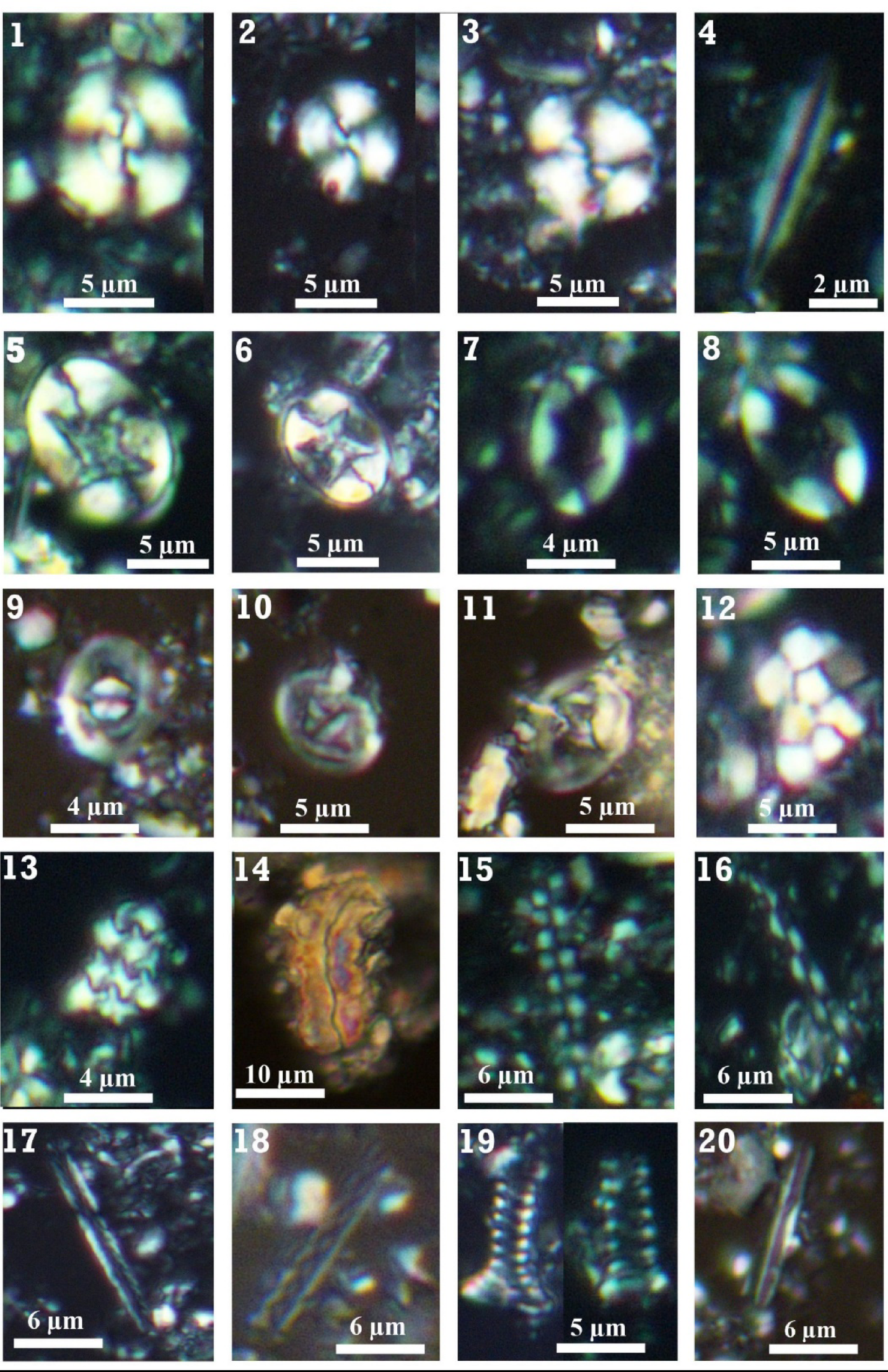

Photomicrographs for the nannofossil most representative taxa: 1:3- Watznaueria barnesiae, sample 45 m, Subzone UC20c, 4- Lithraphidites quadratus, sample 37 m, Subzone UC20c, 5:6- Eiffellithus turriseiffelii, sample 43 m, Subzone UC20c, 7:8- Eiffellithus gorkae, sample 53 m, Subzone UC20c, 9:10- Tranolithus orionatus, sample 127 m, Zone UC18, 11- Reinhardtites levis, sample 127 m, Zone UC18, 12- Cervisiella operculata, sample 33 m, Subzone UC20c, 13- Cervisiella saxea, sample 25 m, Subzone UC20d, 14- Lucianorhabdus cayeuxii, sample 87 m, Subzone UC20a, 15- Microrhabdulus undosus, sample 20 m, Subzone UC20d, 16:18- Microrhabdulus decoratus, sample 35 m, Subzone UC20c, 19- Tetrapodorhabdus decorus, sample 73 m, Subzone UC20b, 20- Lithraphidites carniolensis, sample 35 m, Subzone UC20c.
