Fig. 7 | Scientific Reports

Fig. 7

From: Enhanced structural and electrical properties of furnace-cooled SrZrO3-modified BFBT lead-free piezoceramics for high-temperature applications

Fig. 7The alternative text for this image may have been generated using AI.

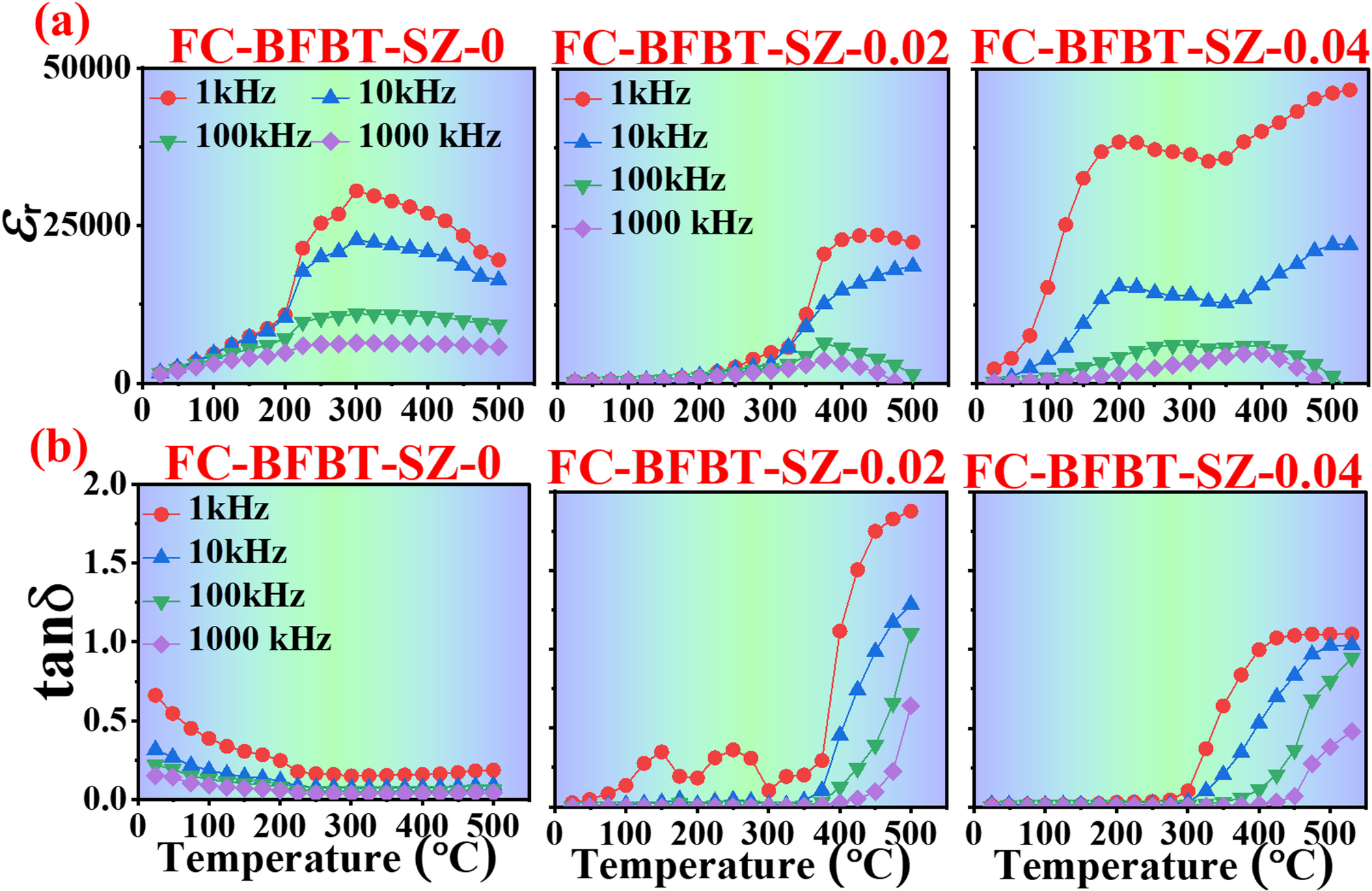

Temperature dependence of (a) dielectric constant (εr) and (b) dielectric loss (tan δ) for FC–BFBT–SZx ceramics (x = 0, 0.02, 0.04 mol%). The dielectric peak shifts to higher temperatures with SZ doping, indicating better thermal stability, while dielectric loss rises near the transition and decreases with frequency.
