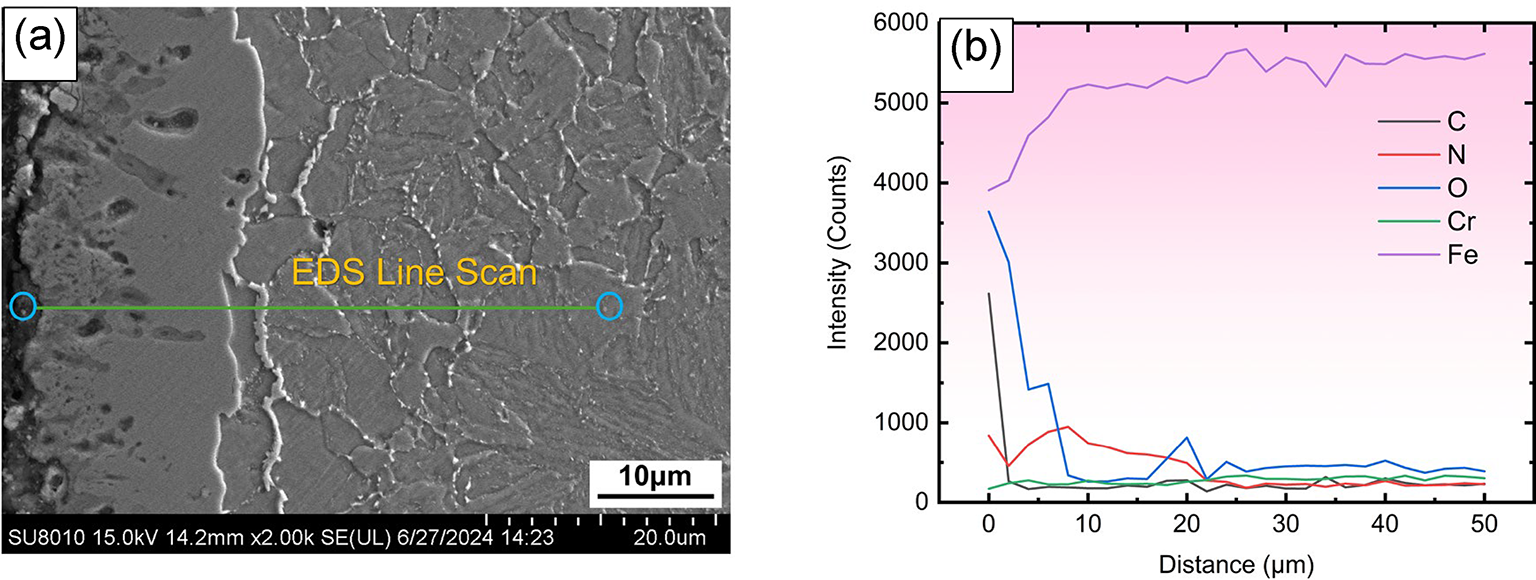

Fig. 2
From: The effect of QPQ treatment on the wear and corrosion resistance of 42CrMo bearing steel
(a) EDS line scan region; (b) line scan results. As shown in (b), the surface has a high oxygen content, which confirms the presence of an oxide layer. Nitrogen content decreases as the distance from the surface increases.
