Fig. 2
From: A V-band high-gain gap waveguide-based slot array antenna with circular polarization

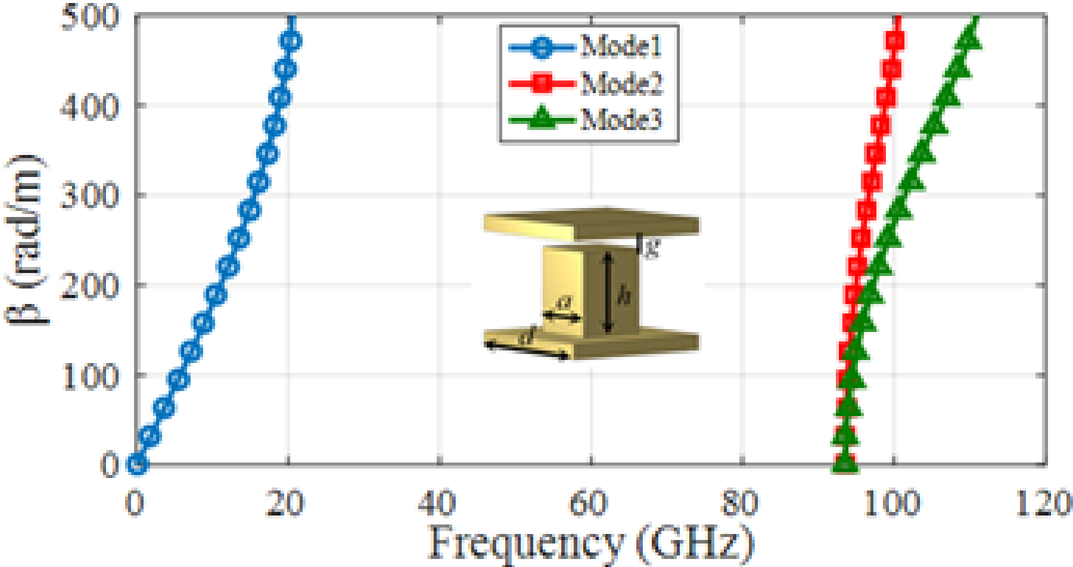

Unitcell of periodic pin structure and its dispersion diagram for the first three modes. The design parameters are (in mm): g = 0.05 mm, a = 0.75 mm, d = 1.75 mm, and h = 1.5 mm.
