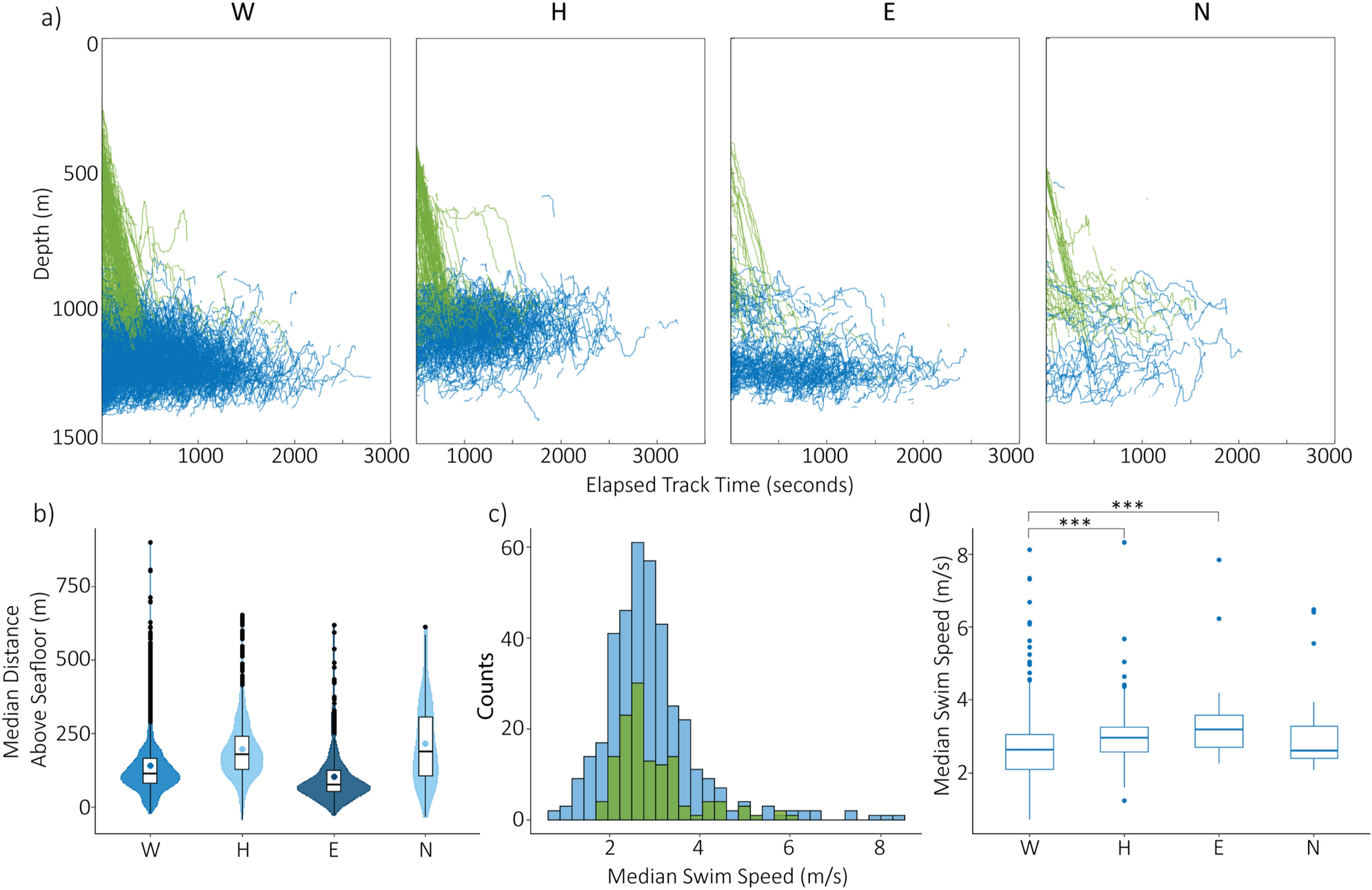

Fig. 3
(a) All tracked whales per site, depth vs time. Green coloring represents the initial descent phase and blue coloring represents the at depth phase. Four panels represent the four sites. (b) Box and violin plot of median distances above the seafloor for whales in the foraging portion of their dive (blue) per site. Shading (dark, medium, light) represents groups that are significantly different to each other. (c) Distribution of median swim speeds for all sites. Green coloring represents median swim speeds for initial descent and blue coloring represents at depth phases. Swim speeds between these phases were not significantly different. (d) Boxplots showing median swim speeds at depth (blue) per site. Significantly different pairs are indicated with a bracket and adjusted p value significance denoted as ***p < 0.001.
