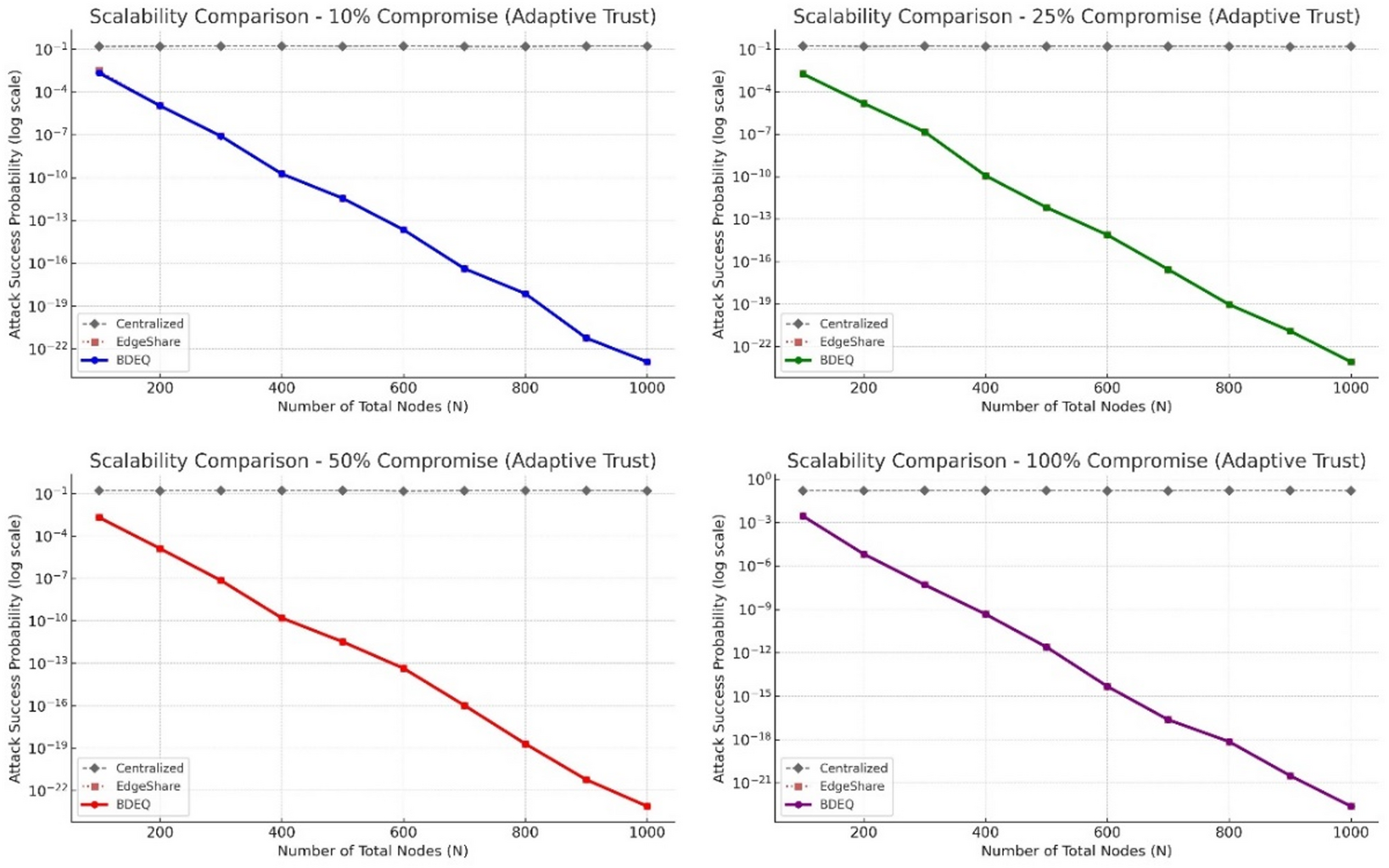

Fig. 6
From: Enhancing secure IoT data sharing through dynamic Q-learning and blockchain at the edge
Resilience comparison – Attack success probability (log₁₀ scale) as a function of the total number of edge nodes (100 to 1000) under varying compromise levels (10%, 25%, 50%, 100%) for three architectures (Centralized, EdgeShare, BDEQ).
