Fig. 5
From: Spinal cord neuromodulation for blood pressure control using low-intensity focused ultrasound

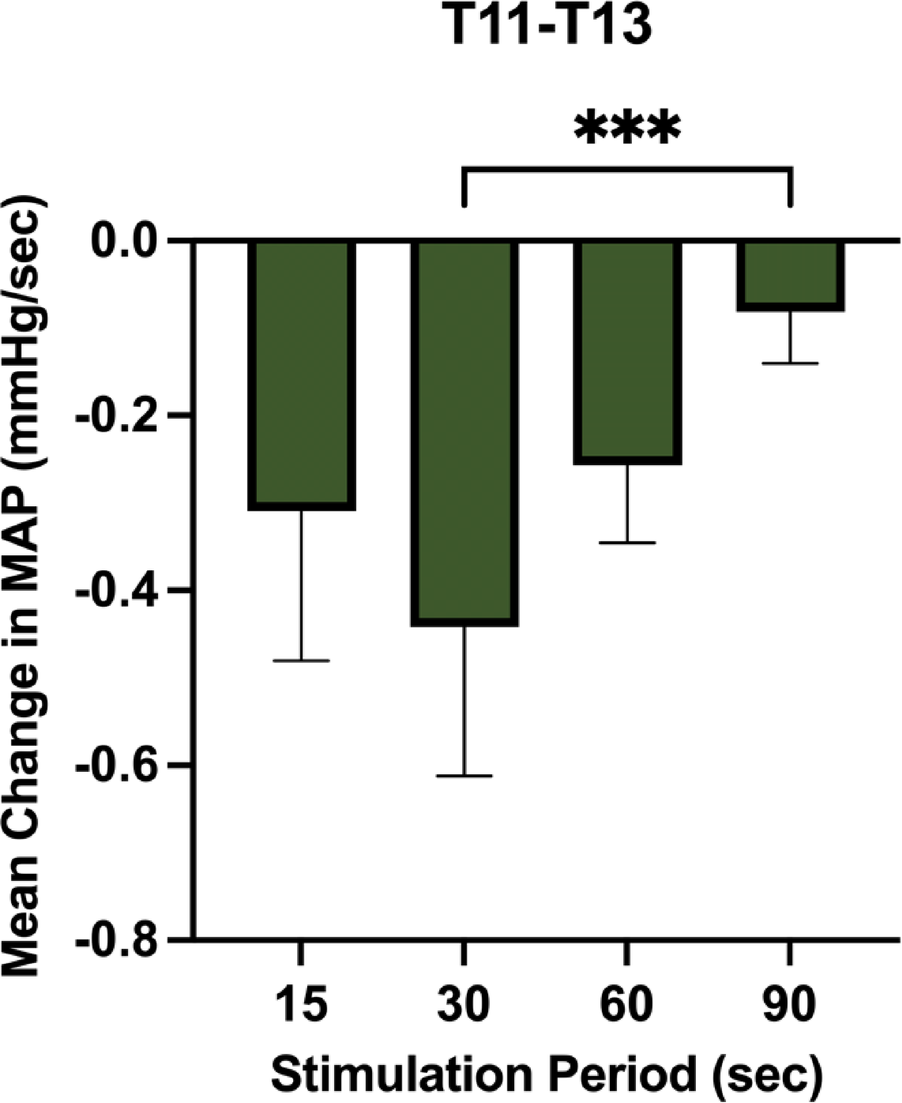

Mean change in MAP after FUS stimulation at lower thoracic spinal cord level. The figure depicts the average change in MAP for one second of stimulation (n = 4 rats). Four stimulation periods were evaluated: 15, 30, 60, and 90 s. A one-way between-subjects ANOVA showed that a 30-s FUS stimulation period was more effective at inducing a neuromodulatory change in MAP compared with a 90-s FUS stimulation period; α = 0.05; ***P = 0.0005.
