Fig. 13

From: Advanced optical measurement techniques for simultaneous fibre orientation and flow analysis complemented by machine learning

Fig. 13The alternative text for this image may have been generated using AI.

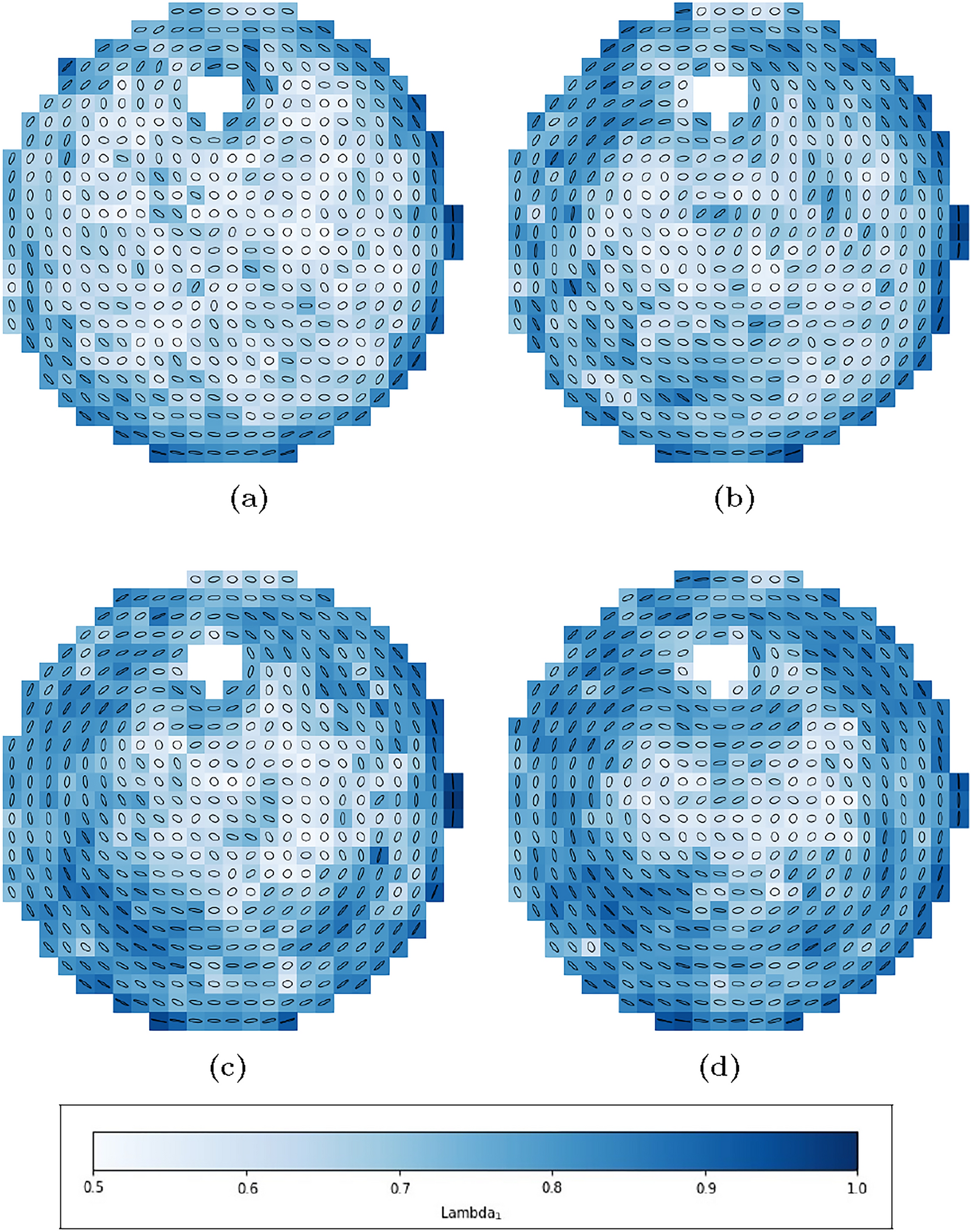

Representation of the orientation of the fibres in the flow area with the respective eigenvectors \(\vec {k}_{A1}\), \(\vec {k}_{A2}\) and eigenvalues \(\lambda _{A1}\), \(\lambda _{A2}\) as ellipsoids in the respective evaluation windows at certain times of the measurement.
