Fig. 2
From: Video based heart rate detection in unrestrained laboratory rats: a feasibility analysis

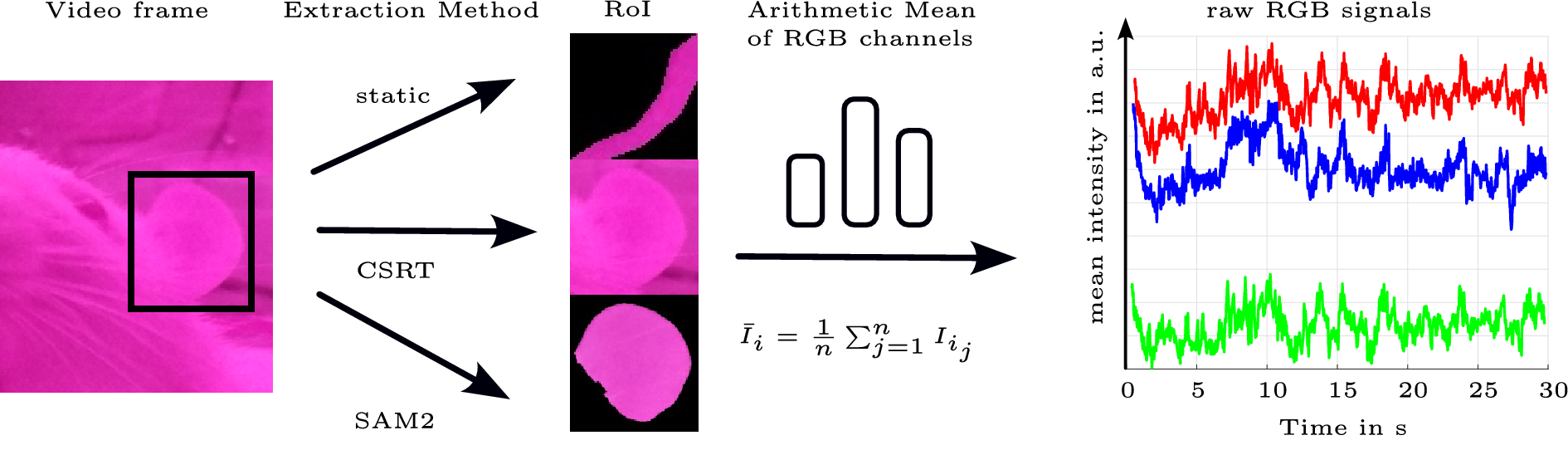

Graphical representation of the approach used to extract mean intensity signals from the acquired video frames. All steps were repeated for each video frame to receive the raw signal in time domain.
