Fig. 2
From: Integrative genomics characterizes HCC eRNAs for prognosis and targeted therapy

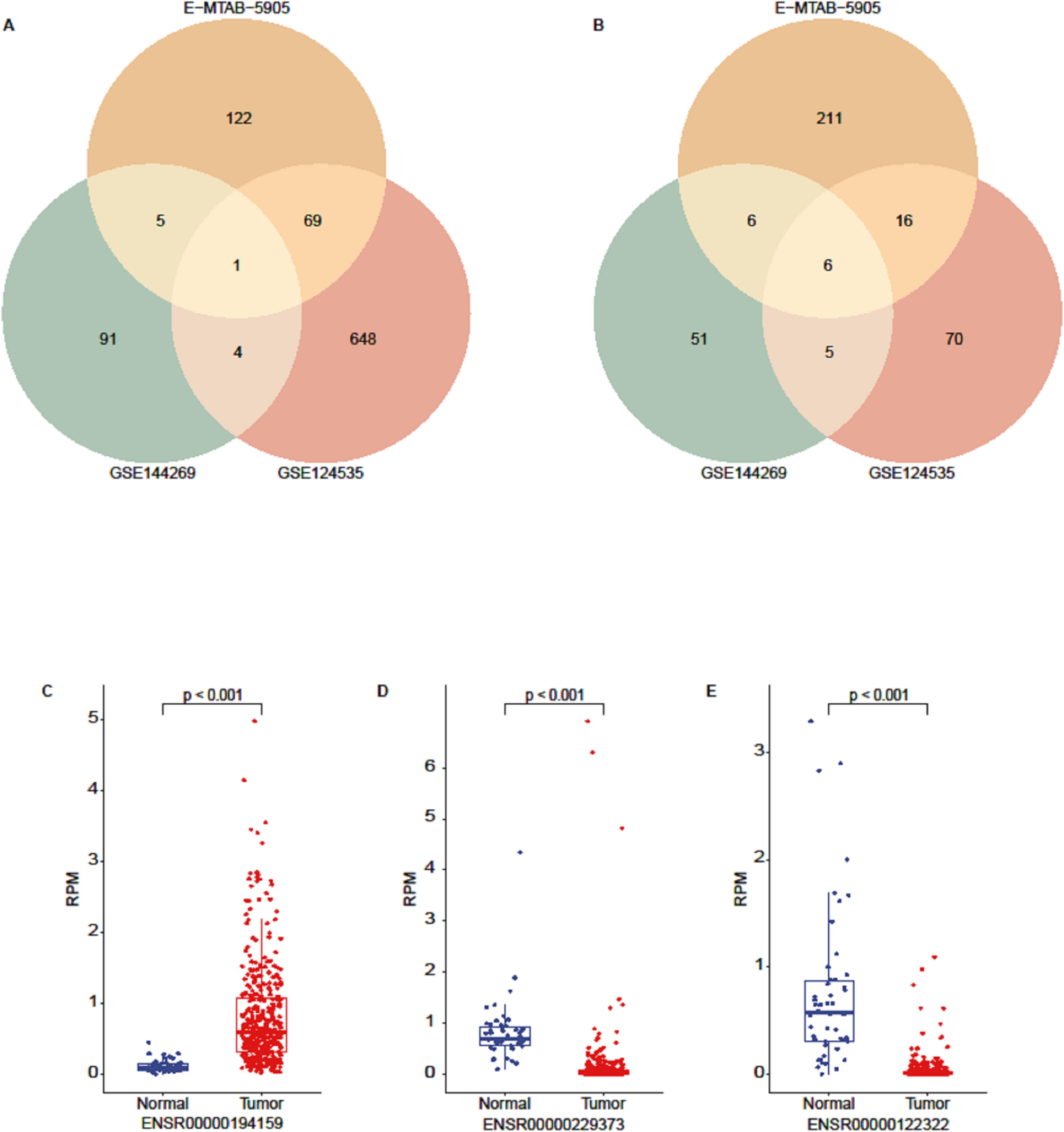

Distribution of eRNA biomarkers. (A) Tumor-specific eRNA in the multi-datasets. (B) Normal-specific eRNA in the multi-datasets; the graph values indicate the number of eRNAs that satisfy the screening criteria. (C) The expression levels of ENSR00000194159 in tumor tissues in the LIHC dataset were significantly higher than in normal tissues (P < 0.05). (D) The expression level of ENSR00000229373 in tumor tissues is significantly lower than that in normal tissues (P < 0.05). (E) The expression level of ENSR00000122322 in tumor tissues is significantly lower than that in normal tissues (P < 0.05).
