Fig. 9 | Scientific Reports

Fig. 9

From: Morphology, molecular phylogeny and record verification of Sarcophaga ruficornis Fabricius (Diptera: Sarcophagidae) from Egypt

Fig. 9

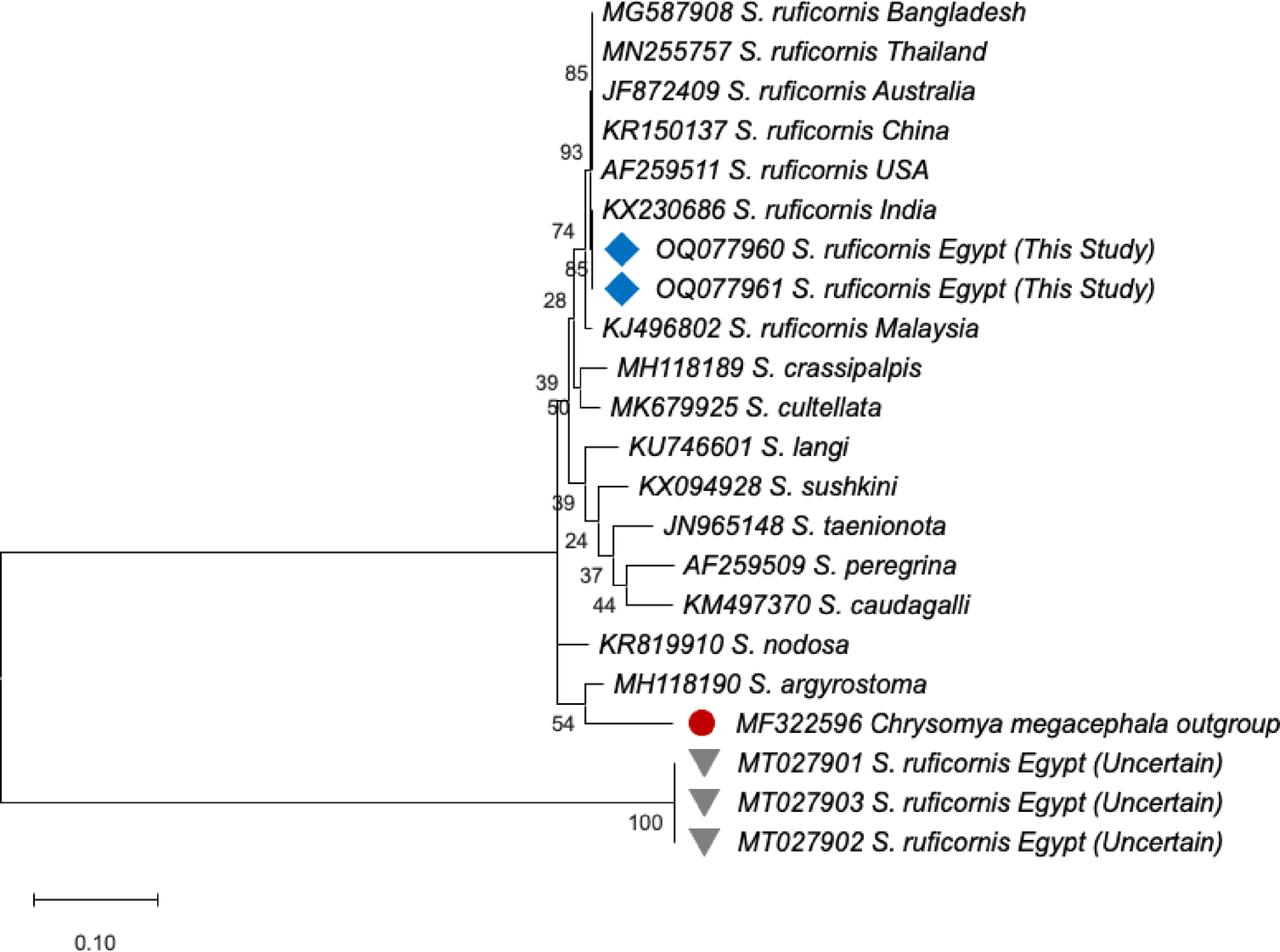

Maximum Likelihood phylogenetic tree of Sarcophaga ruficornis and related species based on the Kimura 2-parameter model of the COI gene sequences. The tree was rooted with Chrysomya megacephala (Family: Calliphoridae, MF322596). The analysis includes sequences from this study (OQ077960 and OQ077961), the three putative Egyptian sequences (MT027901-MT027903), sequences of Sarcophaga ruficornis from other countries, and additional congeneric species. Bootstrap values (based on 1000 replicates) are shown at the nodes.
