Fig. 2
From: Effects of electrode placement on electrical stimulation for wound healing

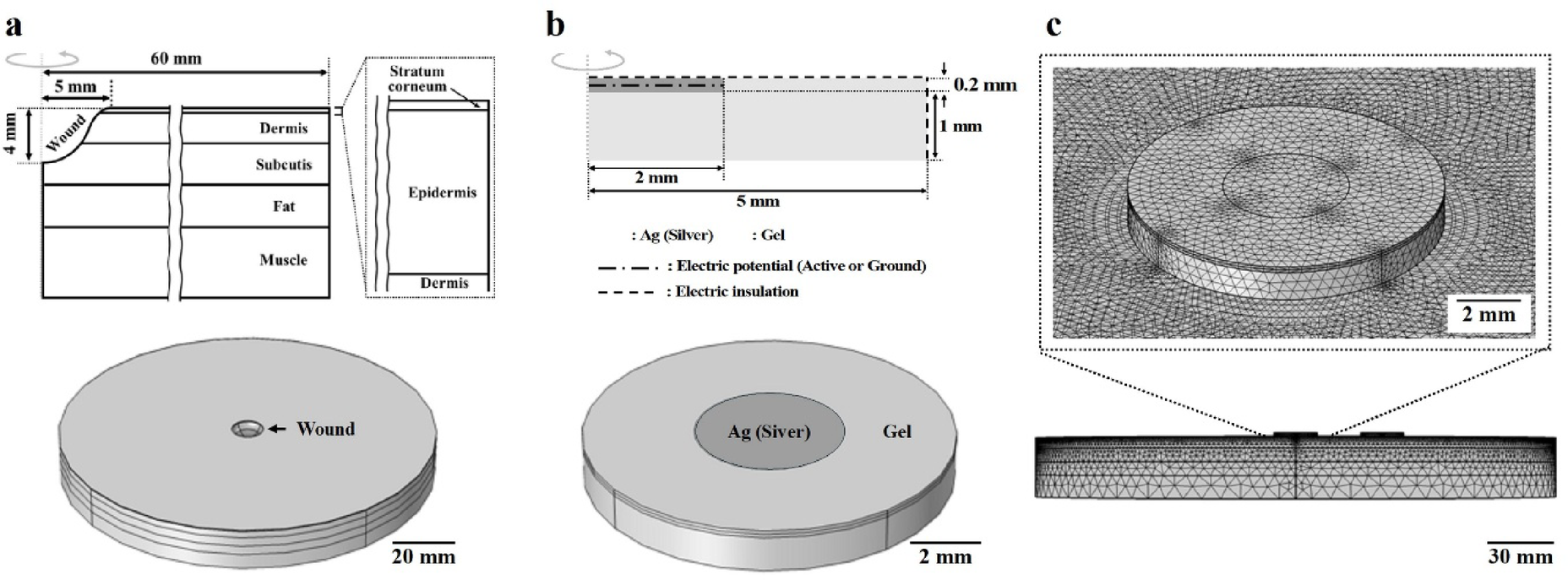

Geometry and three-dimensional finite element model in COMSOL Multiphysics. (a) Geometry and finite element model of the skin and the wound. (b) Geometry and finite element model of the electrode model. (c) Constructed mesh of Group 1’s finite element model.
