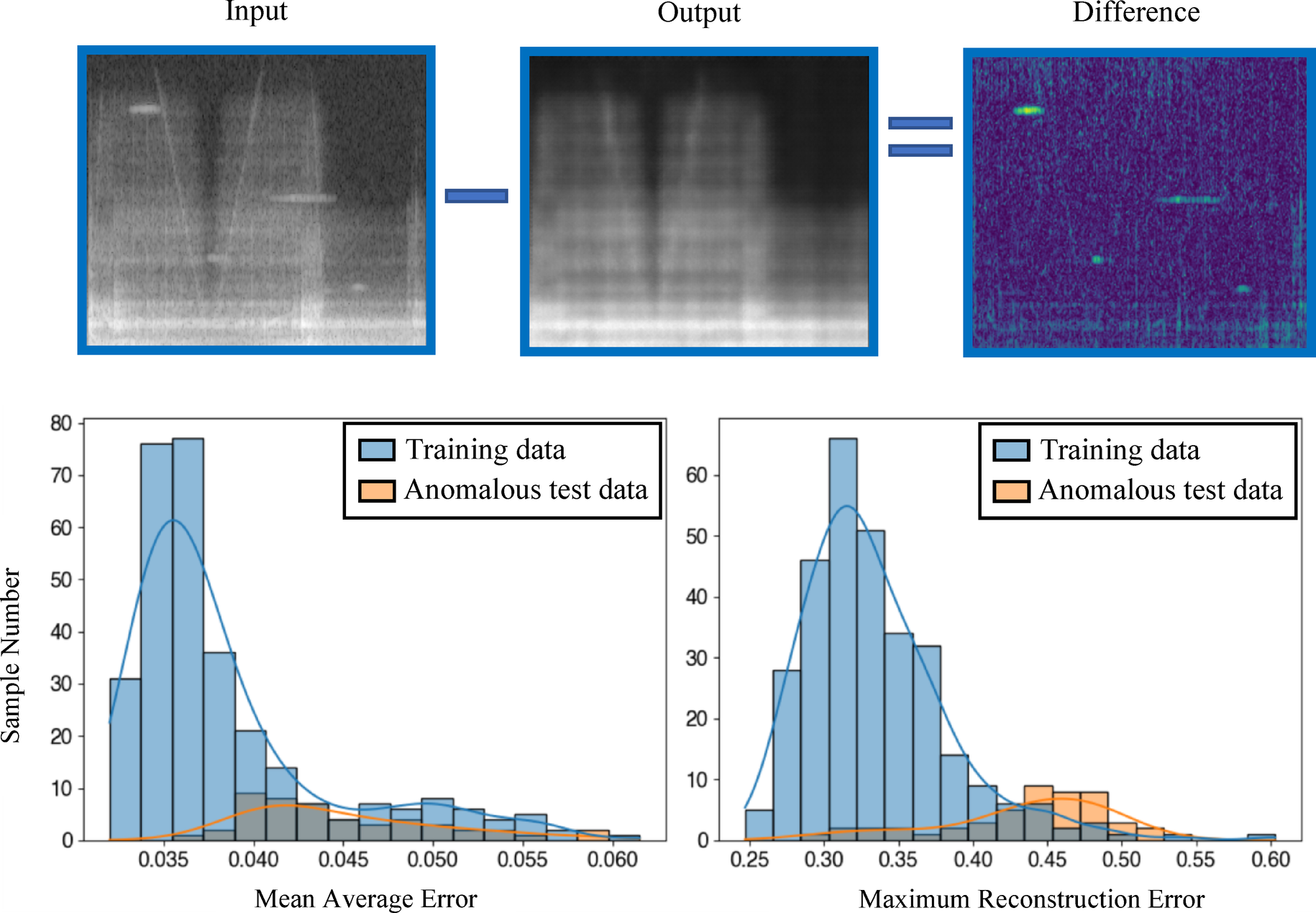

Fig. 10
From: Convolutional autoencoder based condition monitoring system for unique complex technical systems
The input spectrogram (top left) and the reconstructed one (middle). The difference of both is seen in the top right of the picture. Using the MRE, anomalies are detected easier in comparison to the MAE.
